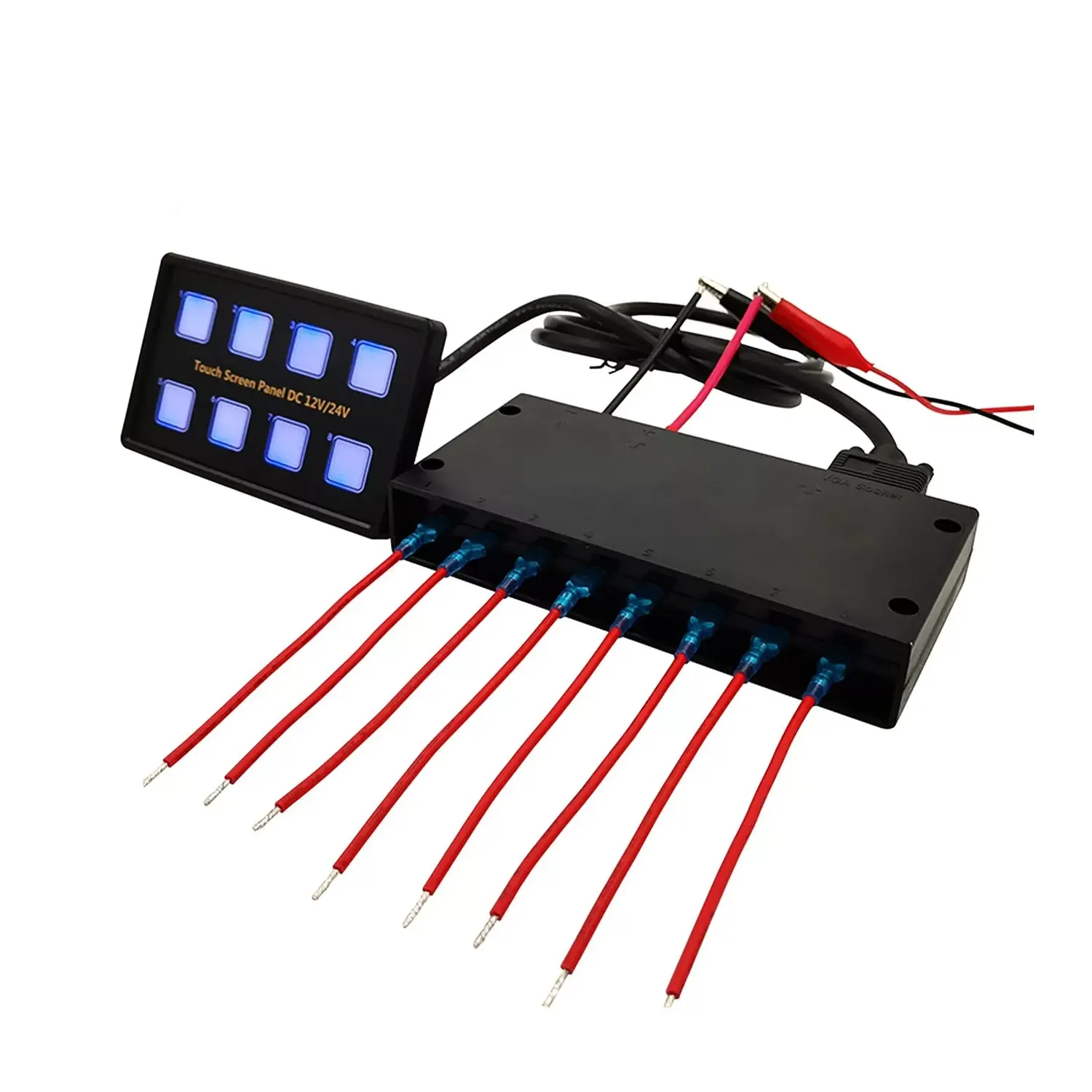

8 Switch Digital Membrane Touch Control Panel Kit

  • Ultra compact panel size
  • Easy to install, almost no mounting depth required
  • Indicating LED and 10A PPTC protection
  • Push button back light switch
  • 0.250 quick terminals (male)
  • Self-adhesive panel back

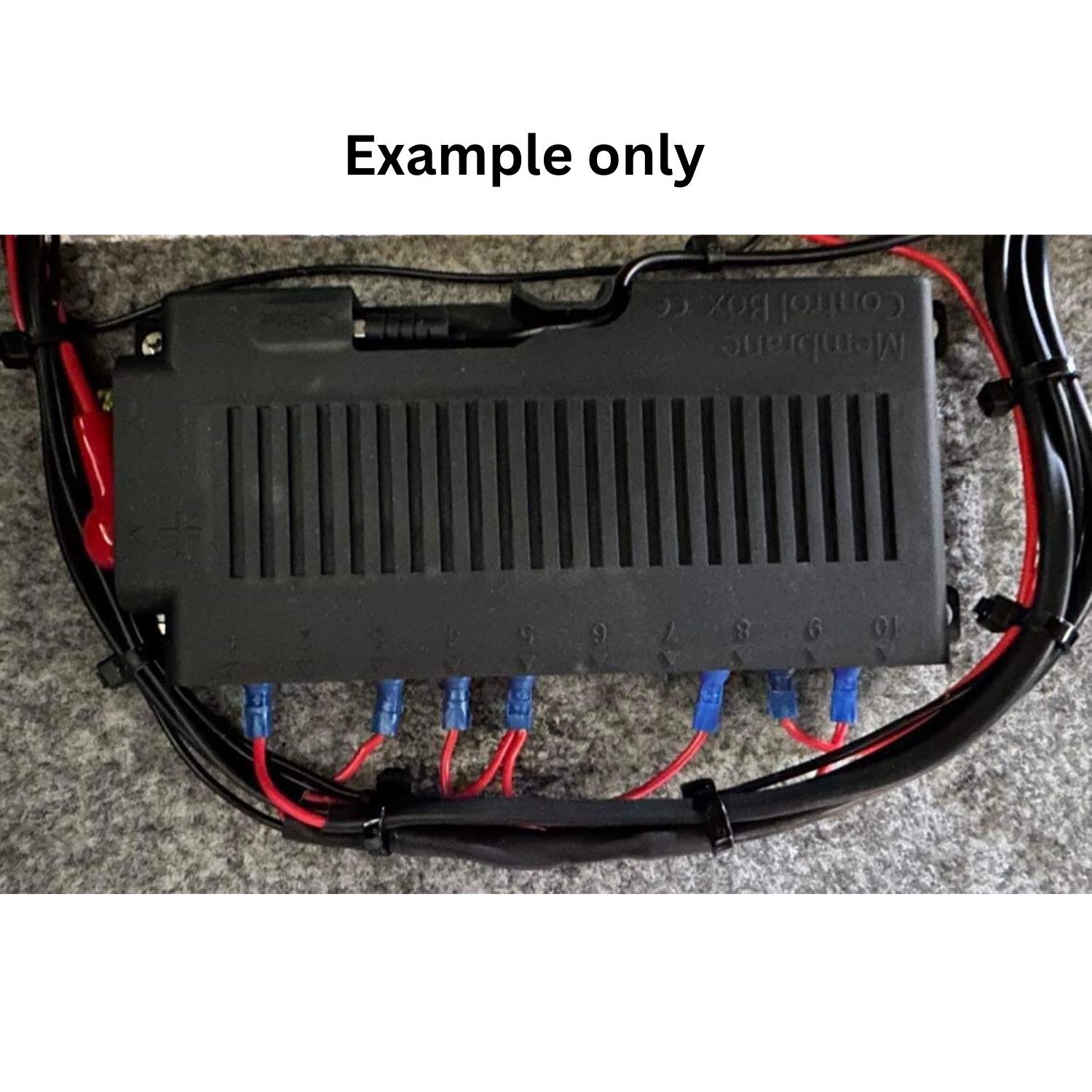

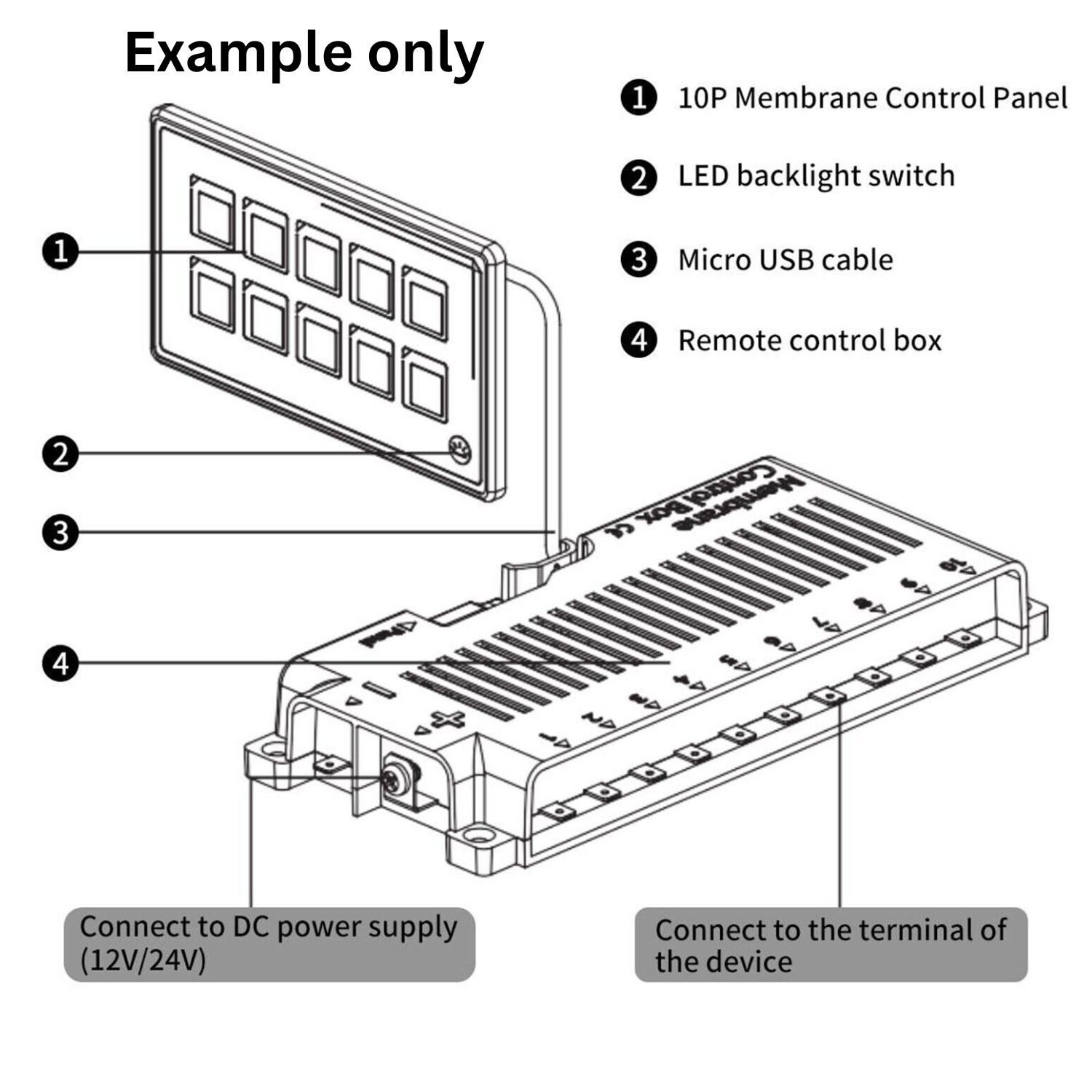

  • Remotely installed control box
  • Programmable momentary button on all buttons

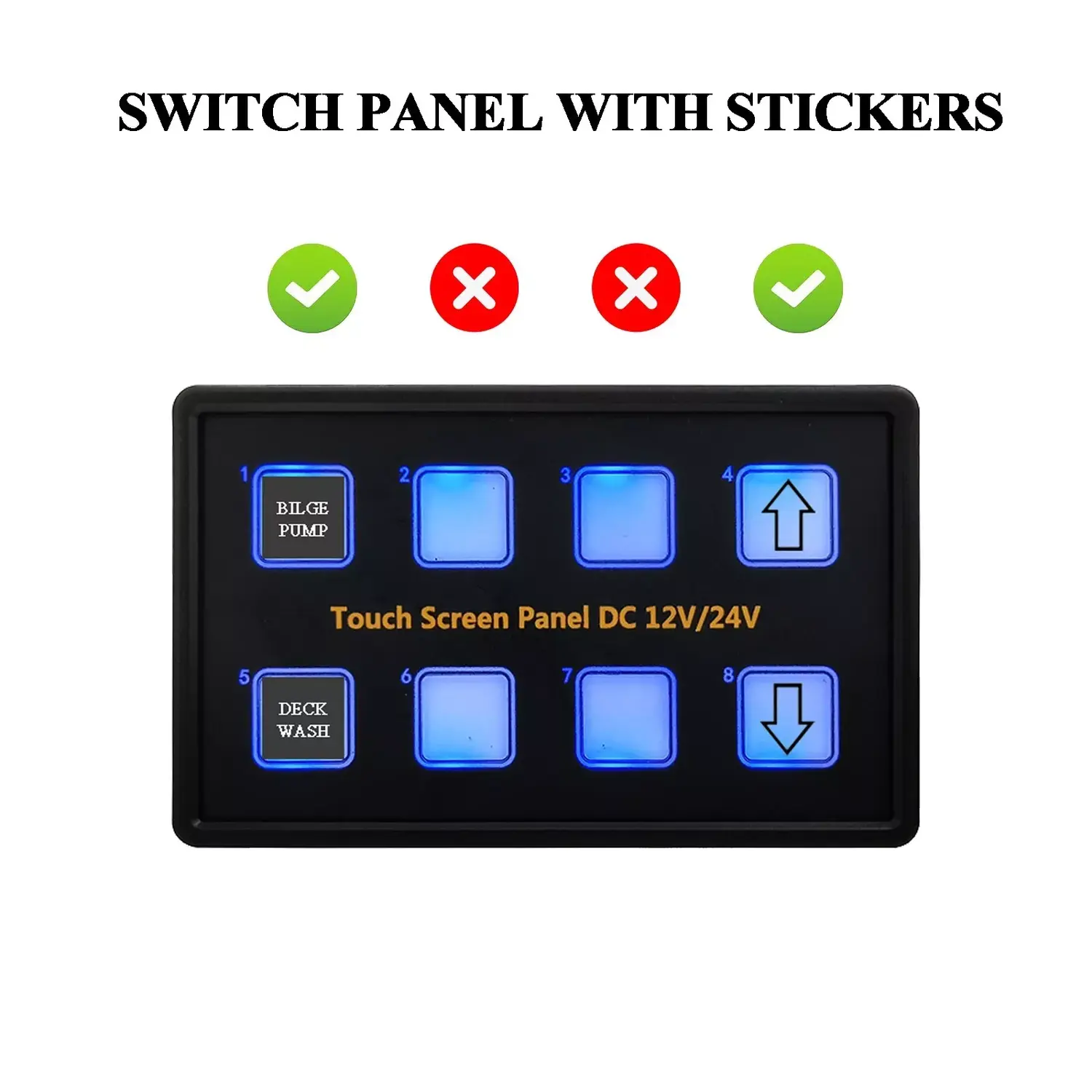

  • Includes 60pc assorted label set
  • Mounting hardware and 1m micro-USB cable included

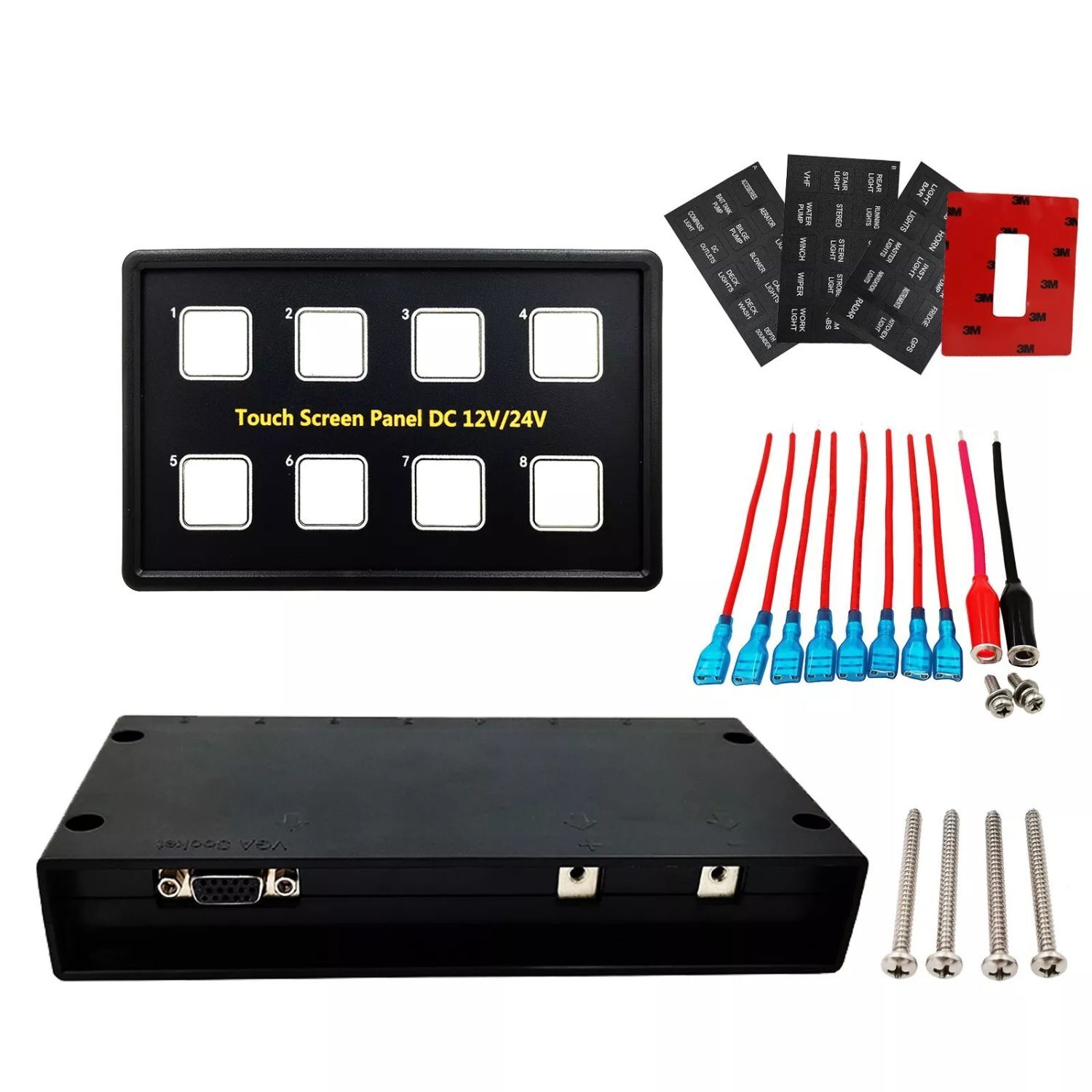

PAKCAGE INCLUDES:

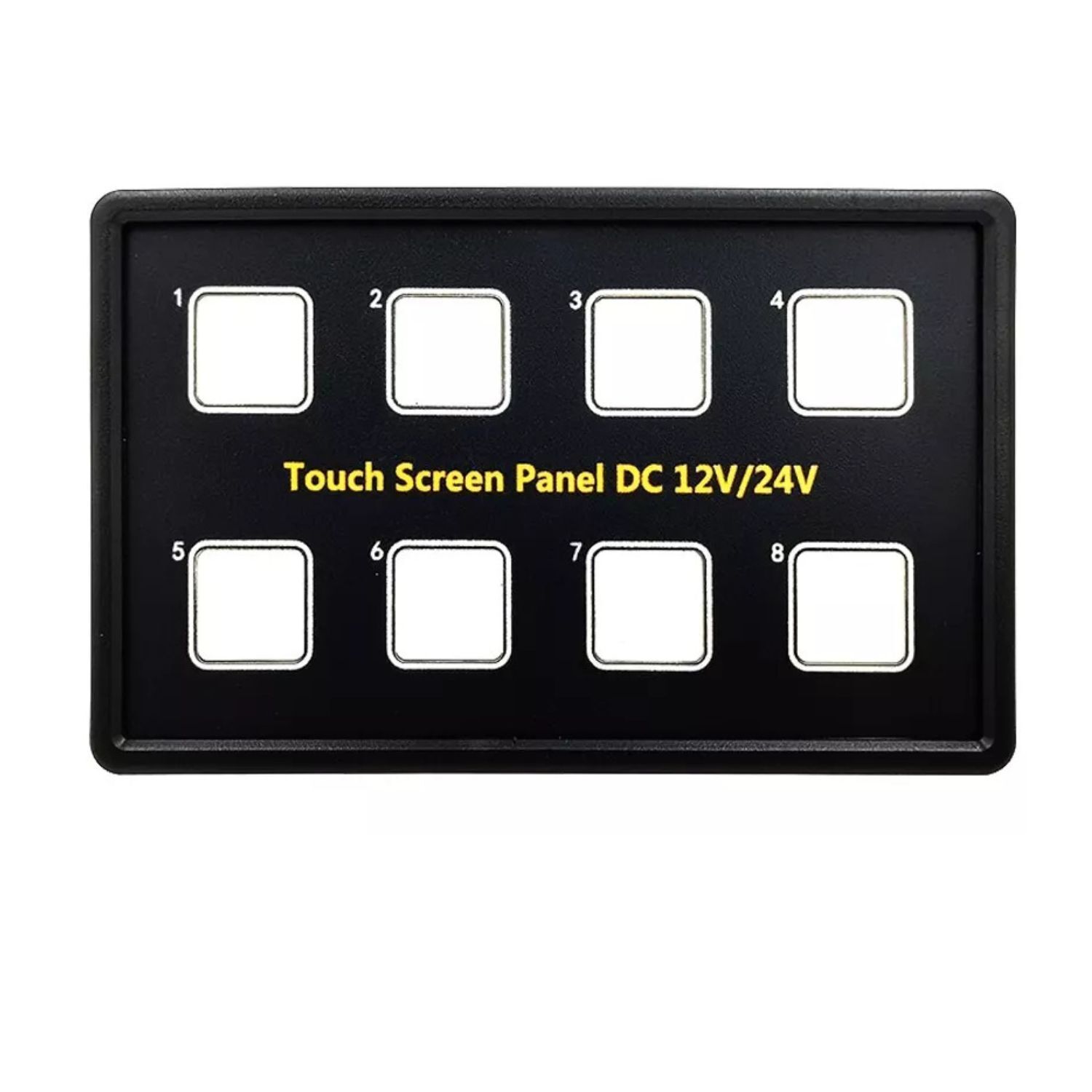

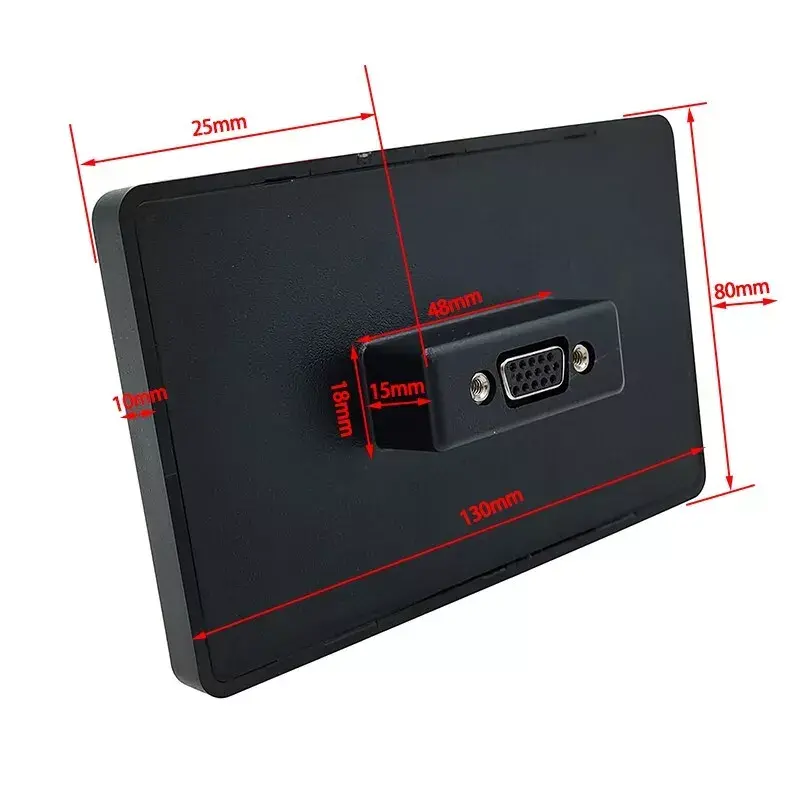

1 x 8 Swith Touch Panel 130 x 80mm
1 x 8 Channel Circuit Control Box 175 x 84.75mm
1 x 15pin VGA Cable

1 x Label Set 45pc
1 x 3M Double Sided Adhesive
2 x Power Input Wire

8 x Power Output Wire
2 x Stainless Steel Screws (M4 x 12mm)
4 x Stainess Steel Screws (M4 x 45mm)

Specifications

Positions: 8

Touch Panel Width: 130mm

Touch Panel Height: 80mm

Control Box Length: 175mm

Control Box Width: 84.75mm

IP Rating IP67

Voltage: 12V-24V

Switch Rating: 10A per Branch

Maximum Panel Rating: 40A

(LM540382010-8)

SKU LM540382010-8
Brand Lobster Marine
Shipping Weight 0.6000kg
Shipping Width 0.125m
Shipping Height 0.090m
Shipping Length 0.185m
Shipping Cubic 0.002081250m3
