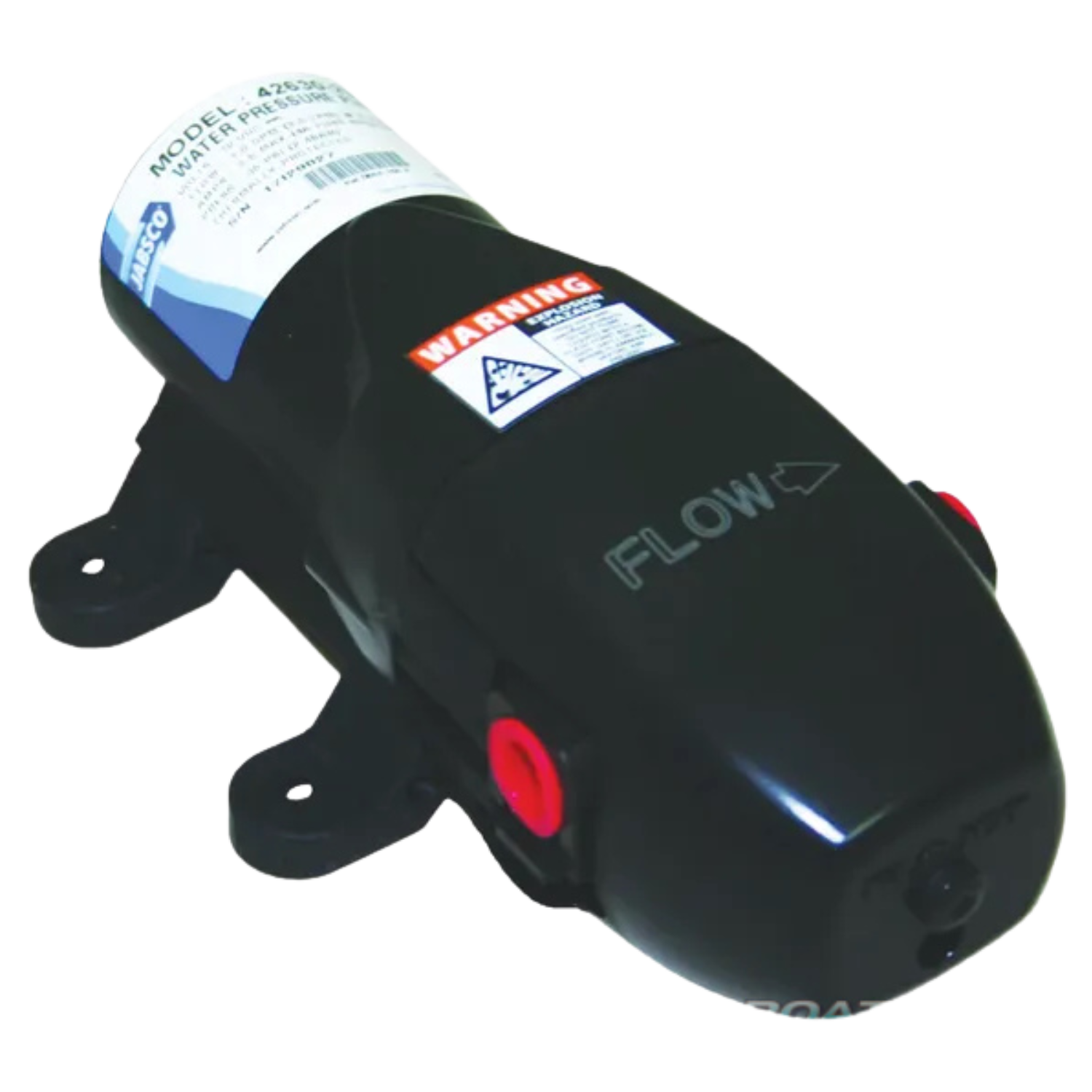

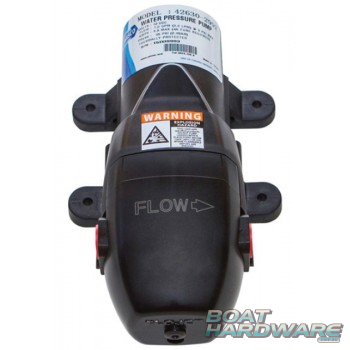

Automatic Freshwater Pressure Pump

  • The JABSCO Par-Max 1 series pumps are extremely reliable miniature multi-outlet water pressure pumps.
  • This 42630-3512-3C Model will automatically turn on when a fixture is opened and turn off when all fixtures are closed.
  • It has a modern design, robust reinforced polypropylene housing, santoprene diaphragm, EPDM valves & 316 stainless check valve spring.
  • Ideal for small boats, caravans and campervans
  • Low Amp Draw ideal for battery powered applications
  • Built-in Thermal protector overload protection
  • Quick connect / disconnect plug in ports
  • Self-Priming to 1.8 metres (6ft)
  • 12V Automatic Pump 1.9amp
  • Ports suit 10mm (3/8") hose and adaptors provide for 12mm (1/2") hose.
  • Automatic pressure switch cut off - Pressure up to 35 PSI
  • Vibration and noise reducing rubber mountings.
  • 3.8 litres per minute (1 gallon per minute) at open flow
  • Small & Compact

Package Includes

1 x Automatic Freshwater Pump

1 x 3/8 Hose Connection

Instructions

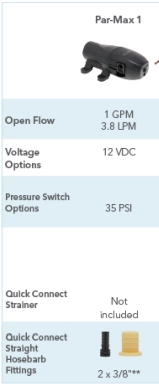

Specifications

Litres per Minute: 4.2

Voltage: 12V DC

Amp Draw: 1.9A

Fuse Size: 4A

PSI: 35

(RWBJ20-094)

12 Months
SKU RWBJ20-094
Model # J20-094
Barcode # 671880841757
Brand Jabsco
Shipping Weight 0.7520kg
Shipping Width 0.180m
Shipping Height 0.230m
Shipping Length 0.430m
Shipping Cubic 0.017802000m3
