Jarrett Boat Trailer Winch

Ratio: 5:1/1:1
2 Speed

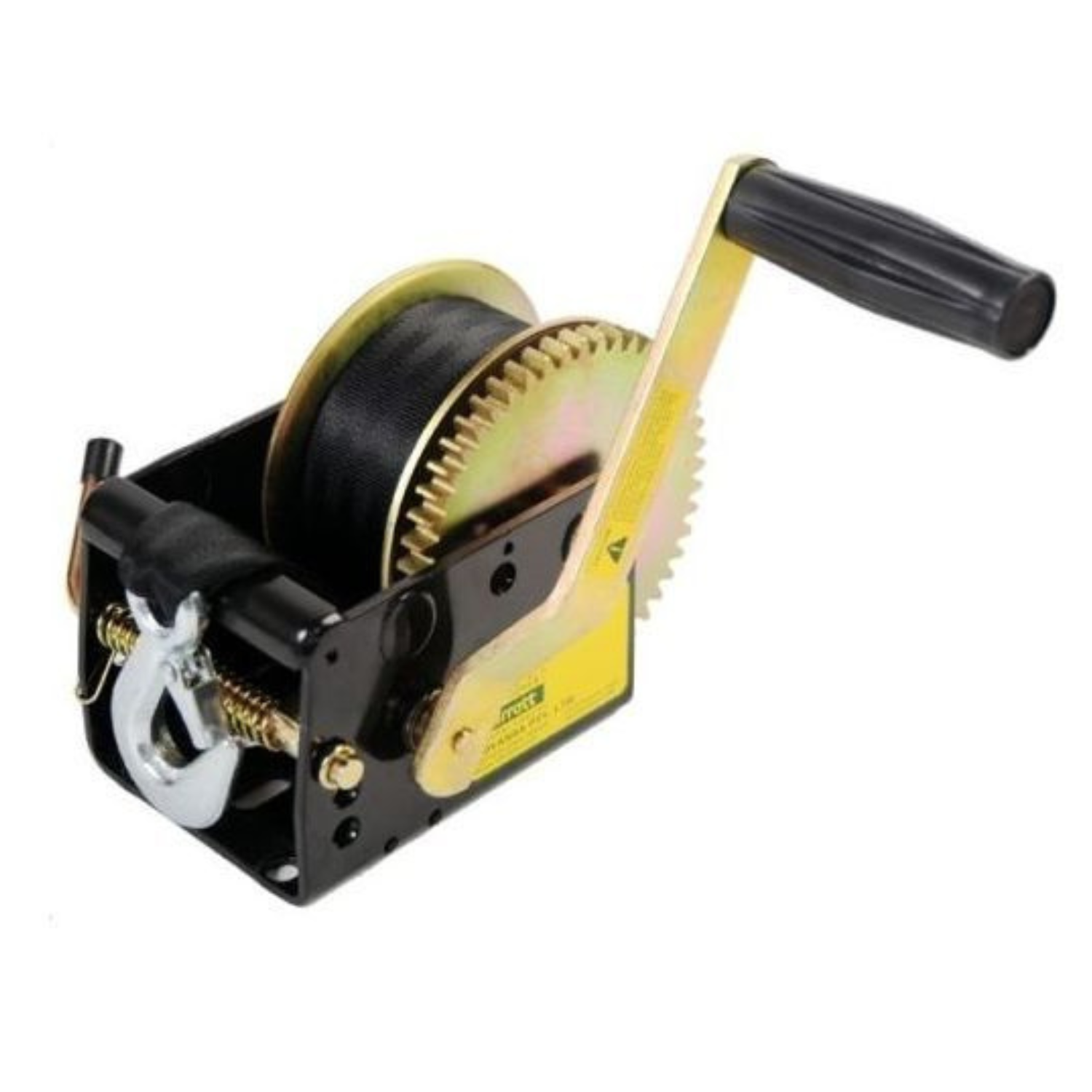

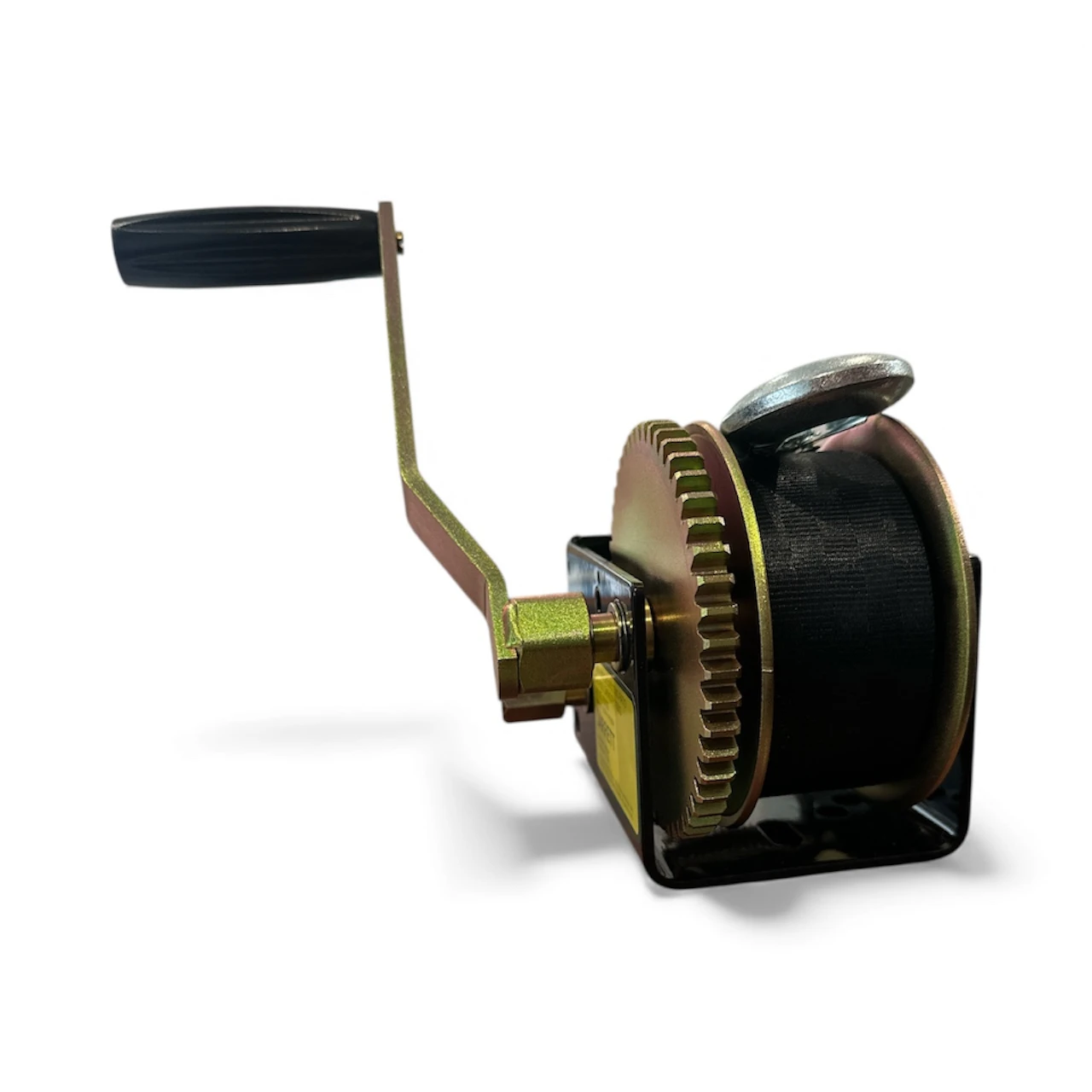

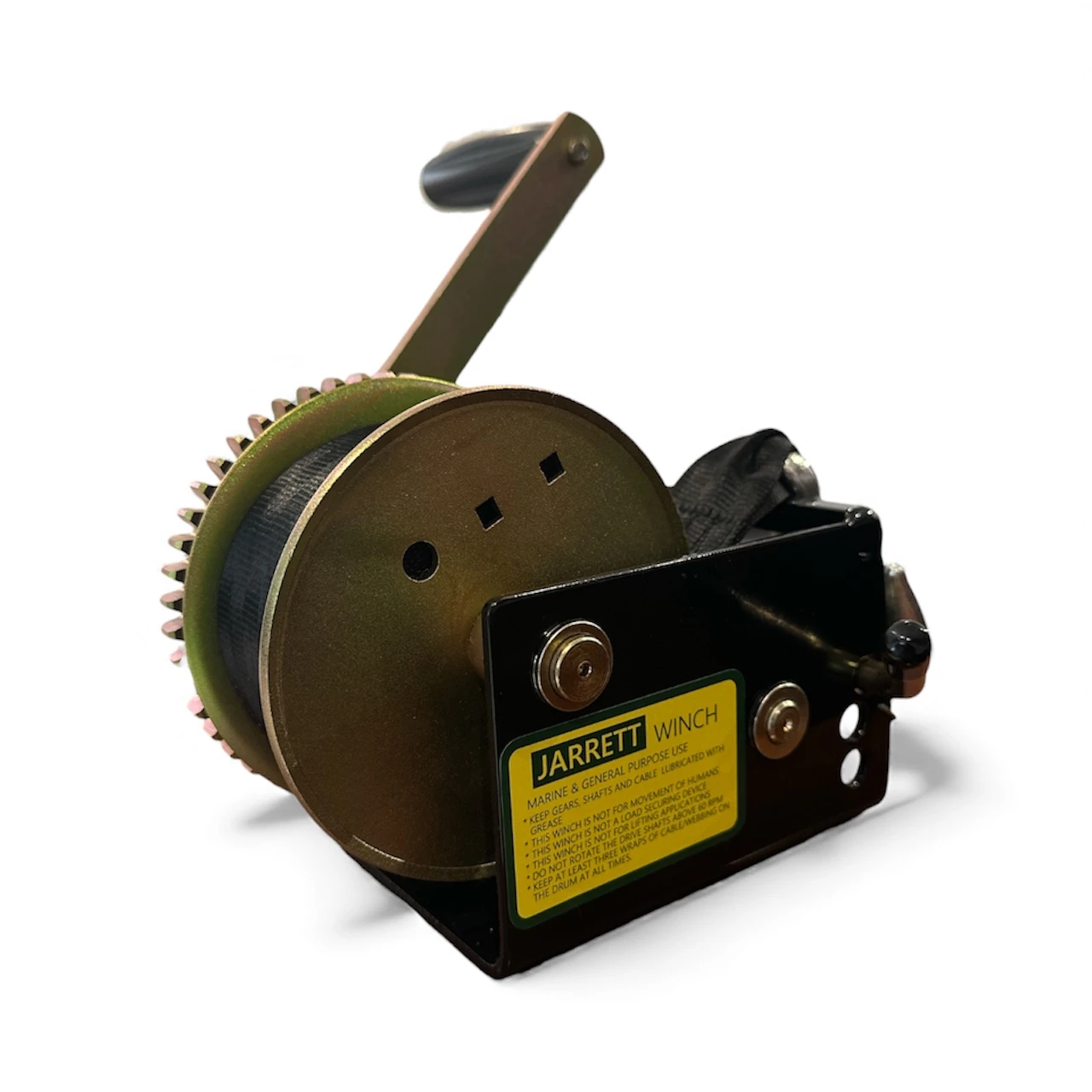

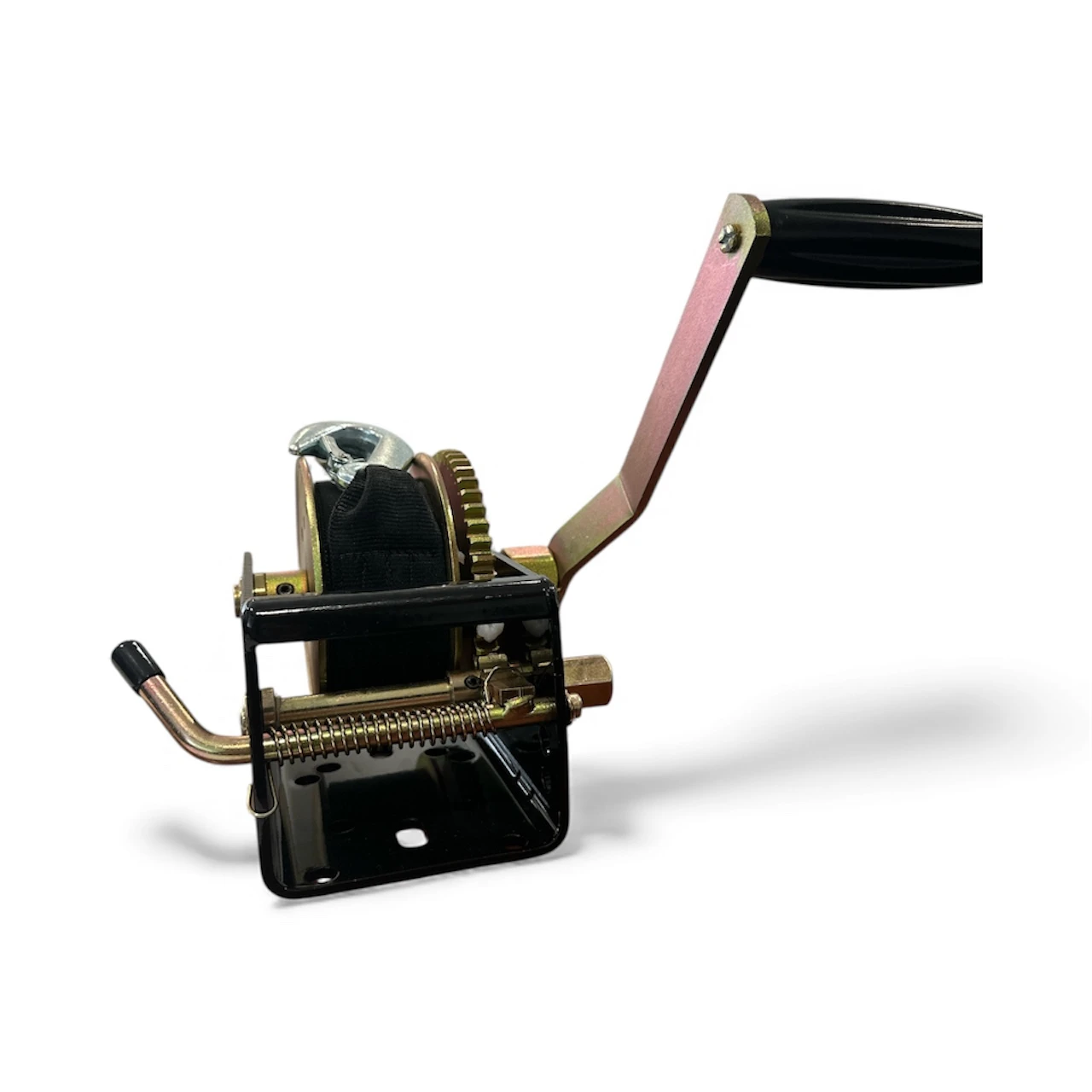

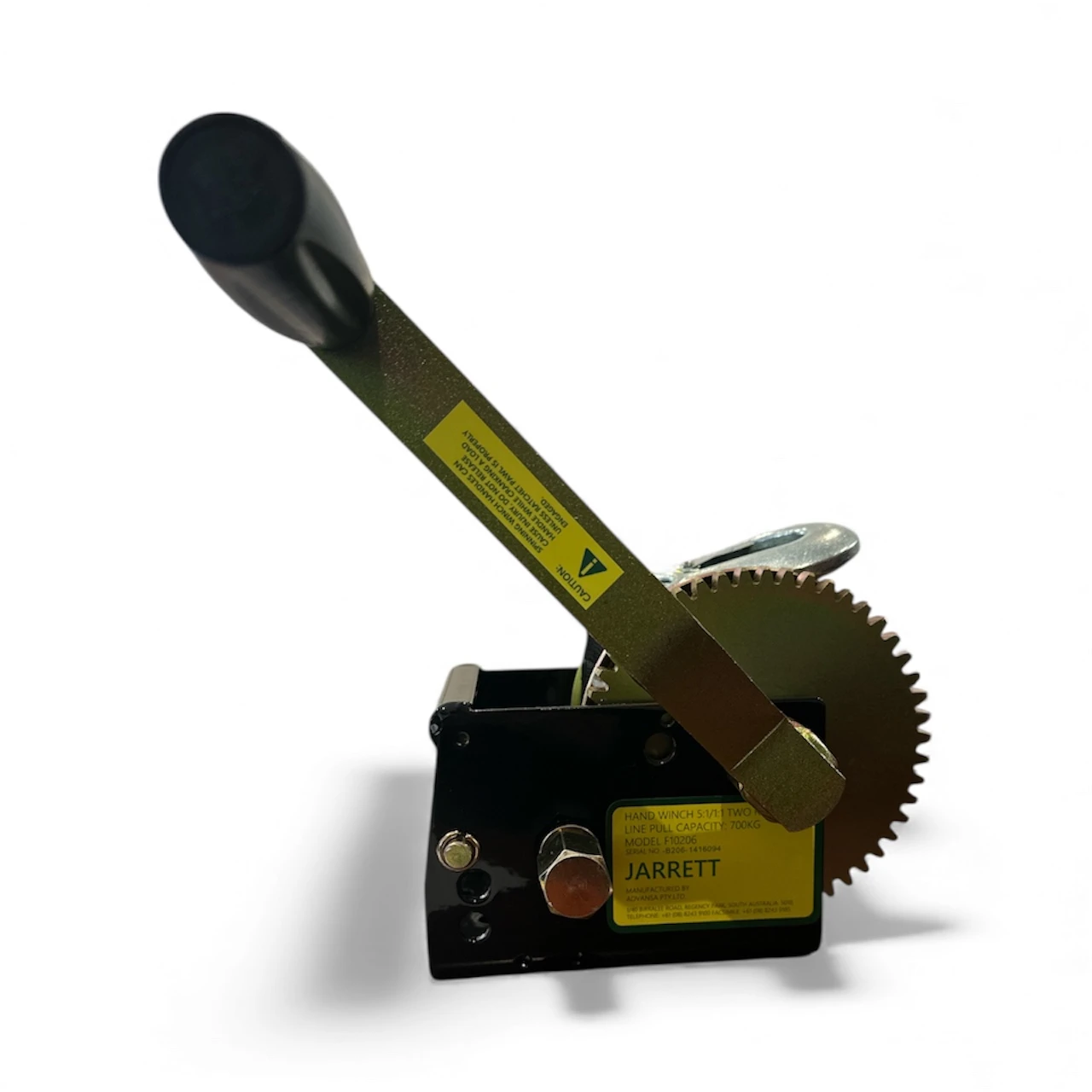

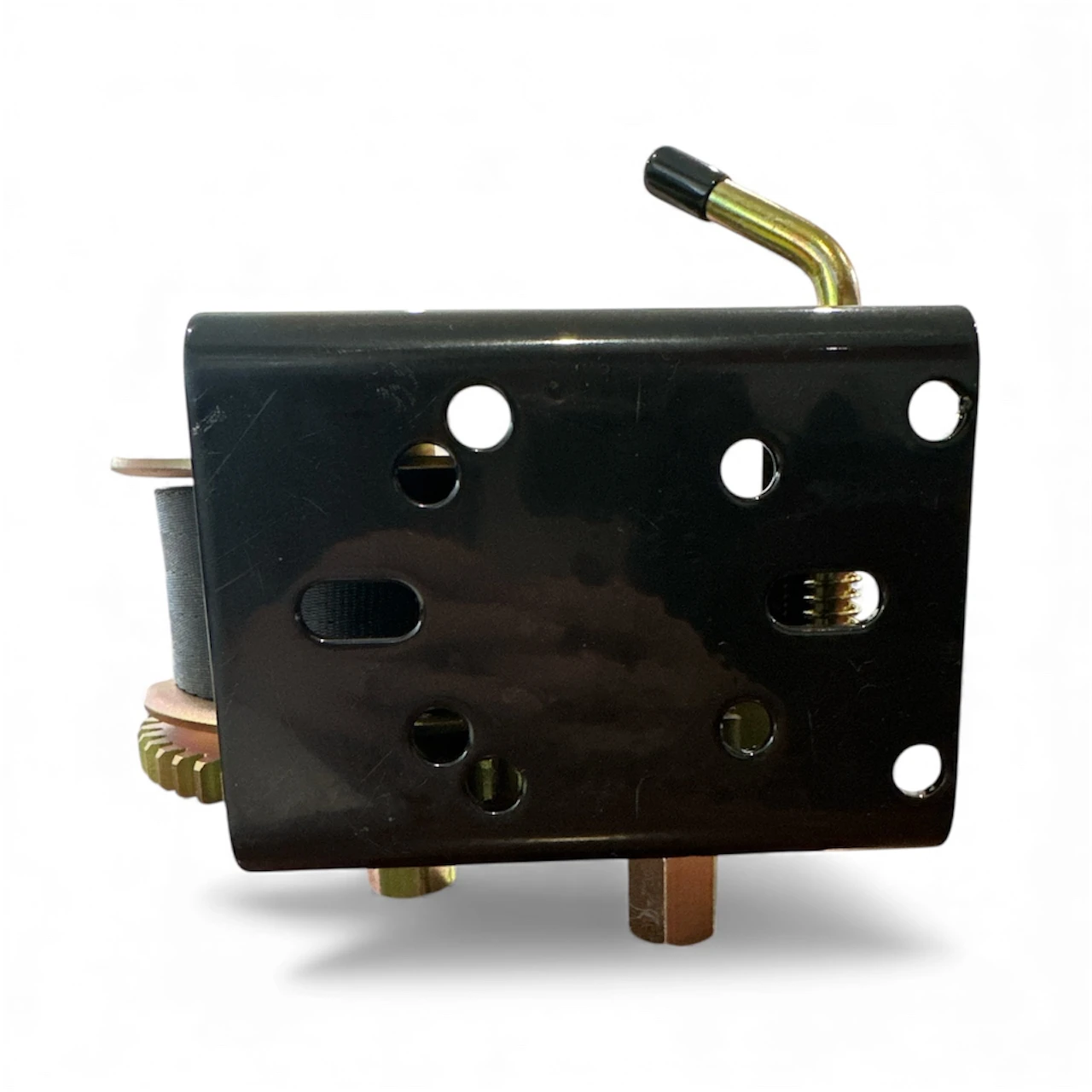

Jarrett 2 Speed Boat Trailer Winch 5:1 / 1:1

Heavy Duty (700kg) - 6m Webbing Strap & Snap Hook

Note: This winch is not to be used for lifting

This winch is recommended for boat size up to 6 metres, aluminium or fibreglass hull boat, where trailer design is unknown or has no keel rollers or side wobbles.

For fast slack cable retrieval, use the 1:1 ratio to retrieve slack cable, when the cable becomes under a load too heavy to operate then use the 5:1 to complete the retrieval of the boat.

Winches are not intended (1) for the movement of people and (2) as a load securing device for boats on trailers

Features



Heavy duty 4mm winch body

Steel bushes

Machined gears

Spare parts available

Electroplated zinc cobalt

Powder coated finish

Detachable handle for change of ratio option

Specifications

Webbing: F10206 (no cover)

Gear Ratio is 5:1 / 1:1

Rated Capacity (using Webbing) / 700kg (6860N)

Mass (Winch only): 4.1kg

Type of Ratchet: Lever Action

Drum Diameter: 50mm

Flange Diameter: 127mm

Drum Width: 52mm

Maximum Webbing: capacity 9m

Max. Effort on handle at Rated Load: 25kg

Breaking Strain – Webbing: 2070kg

Webbing: 6m

Fastening Device: Snap Hook


Owners Technical Information (PDF)

https://7aece389-94f5-4711-a809-15bd3af44110.filesusr.com/ugd/d645f3_badb63f535854cb1bccc15af4b67b344.pdf

(JF10206)

12 Months

SKU JF10206
Model # F10206
Brand Jarrett
Shipping Weight 4.2000kg
Shipping Width 0.270m
Shipping Height 0.170m
Shipping Length 0.280m
Shipping Cubic 0.012852000m3
