Lone Star GX1 Boat Anchor Winch Hi Spec 100m x 4mm Combo

Lone Star GX1 600W Anchor Winch Hi Spec 100m x 4mm Combo

FOR BOATS: Up to 6m

3,000kg Holding Power at Anchor - No need to tie off
Australian Made
5 Year + Life Warranty on Water Ingress
Fast Fall & Retrieval Rate - 39m/min
Suits up to 6m Boats
5 Year + Life Warranty

Australia’s most popular anchor winch, checkout the famous Anchor Winch Shootout video below The Lone Star GX1 Anchor Winch is not just a winch; it’s a game-changer. Built for power and precision, it handles the toughest anchoring tasks effortlessly. Its exceptional reliability, showcased in grueling tests ensures it never falters. Australian Made and backed by Lifetime Warranty for water ingress.

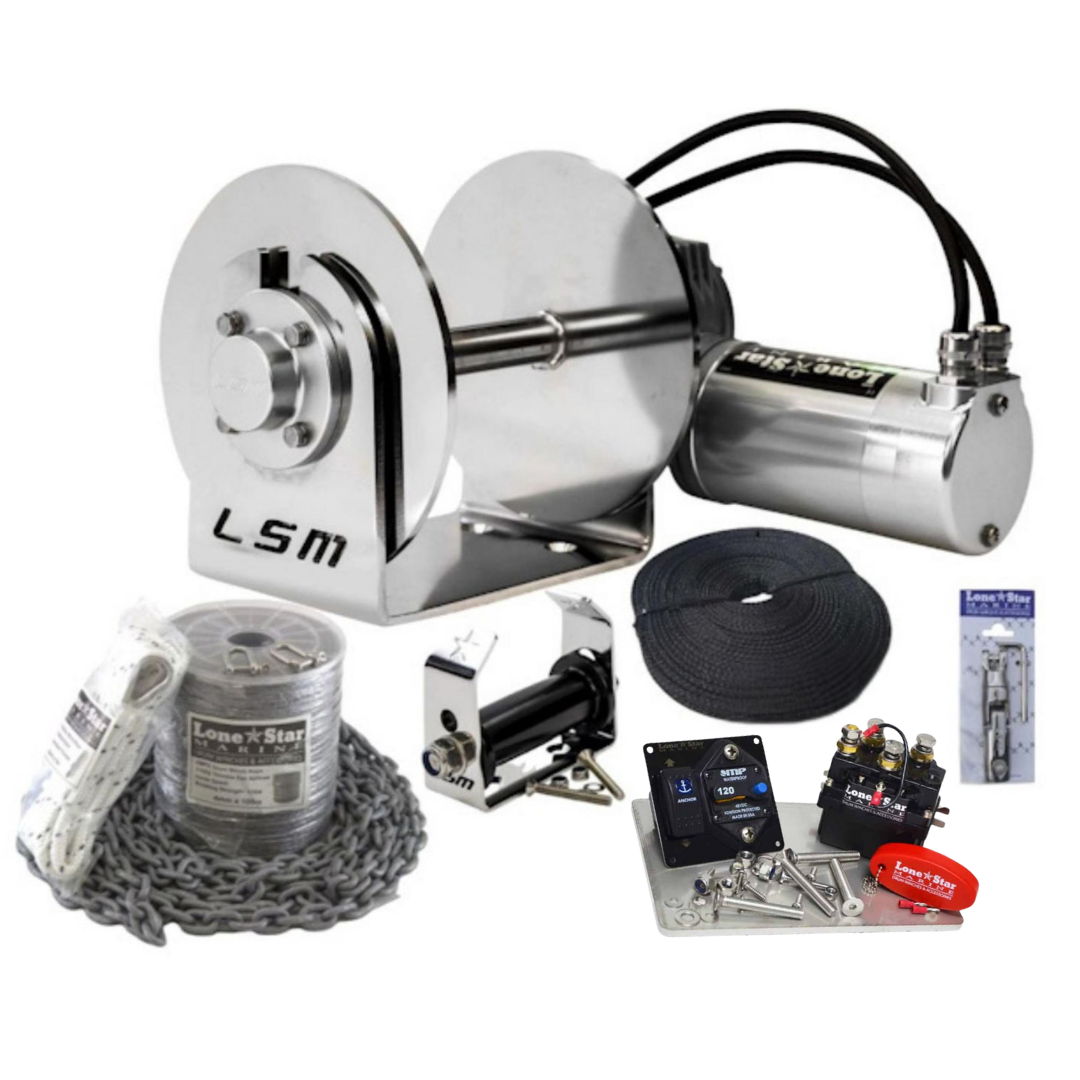

PACKAGE INCLUDES:

1 x GX1 Lone Star 600 Watt ANCHOR DRUM WINCH

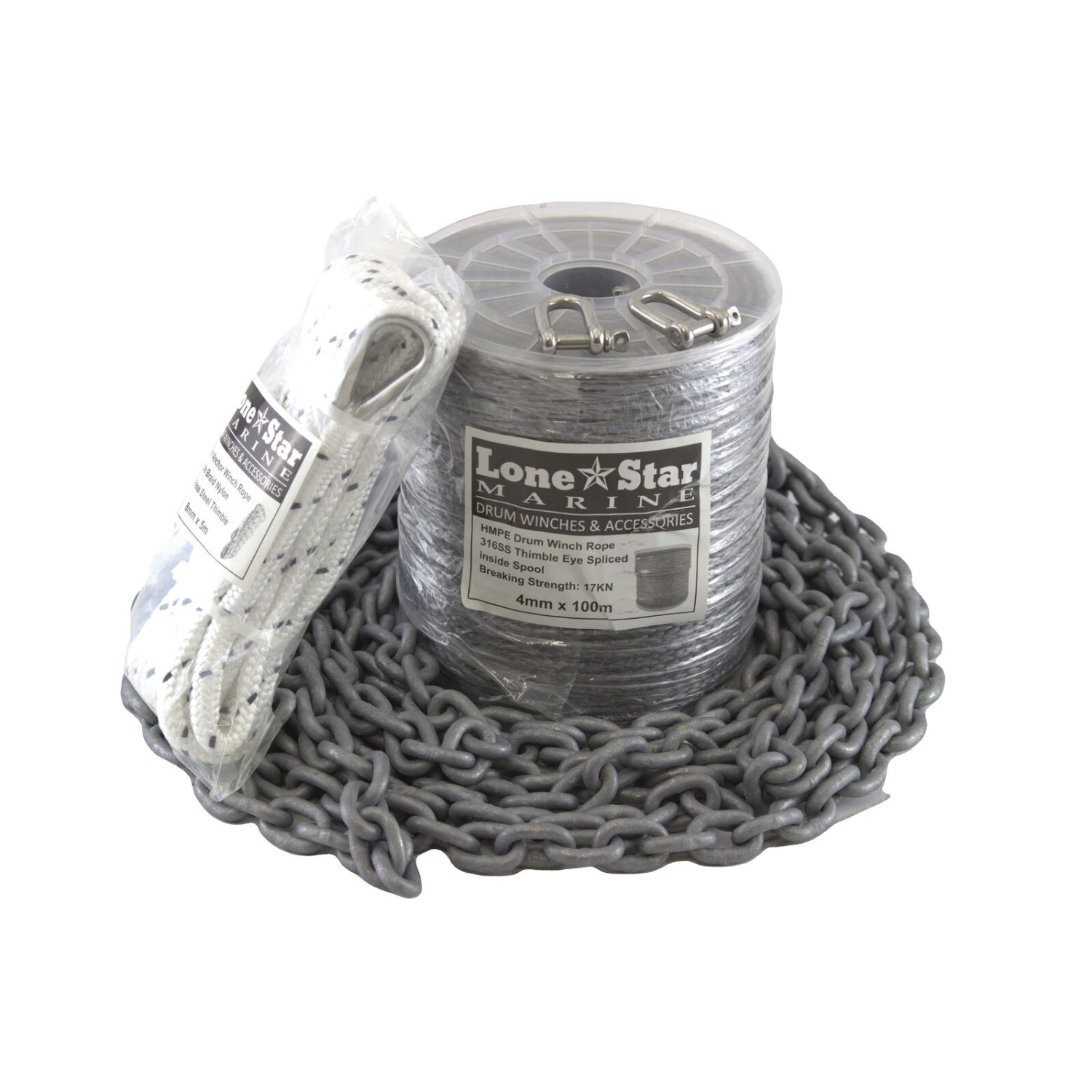

1 x HI SPEC ROPE & CHAIN KIT (100M x 4MM Hi-Spec Dyneema + 5M x 8MM Topshot + 7M x 8MM Short Link Chain)

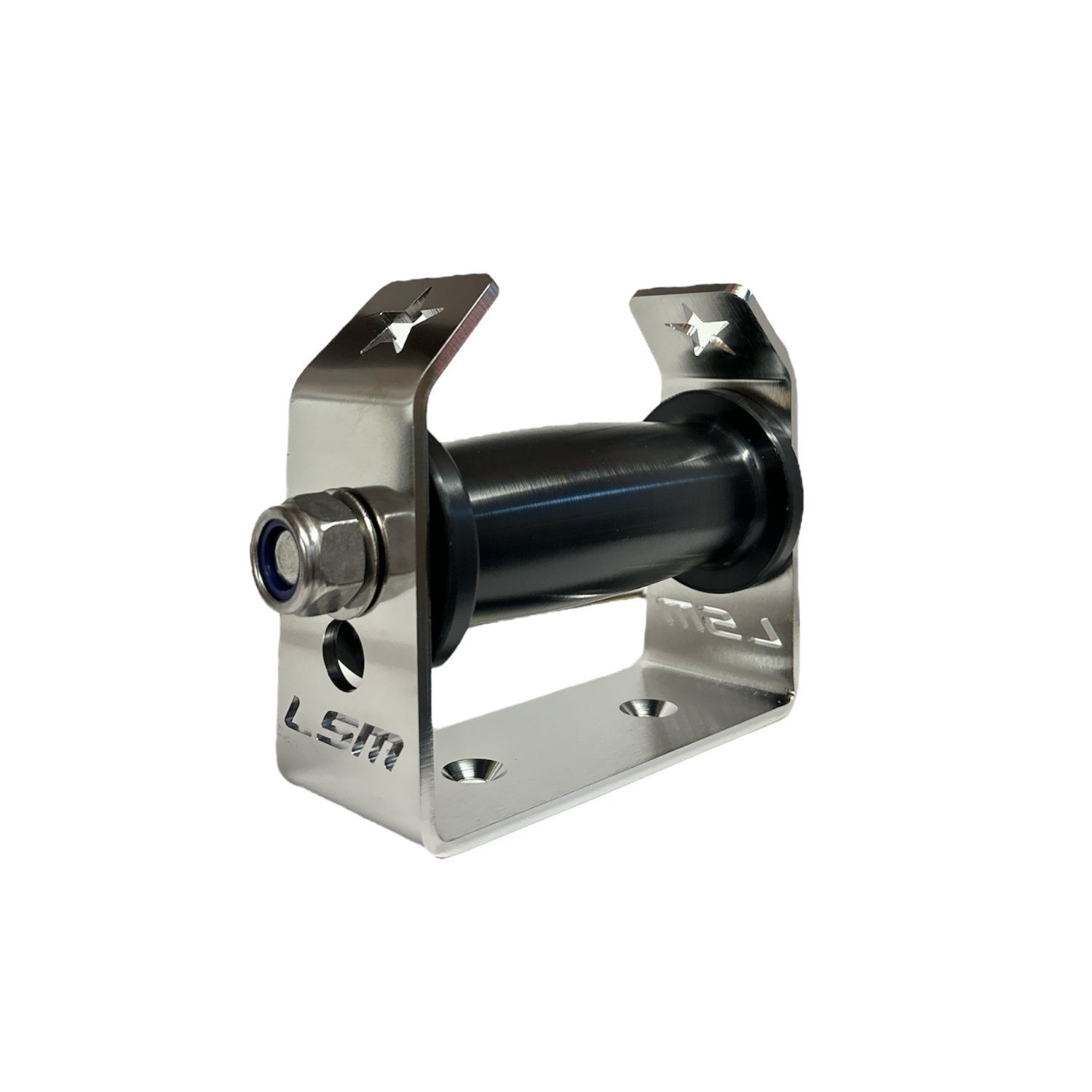

1 x DECK ROLLER (Model CR135)

1 x CHAIN GUARD 6M x 6MM

1 x STAINLESS STEEL ANCHOR SWIVEL

1 x 120AMP CIRCUIT BREAKER

1 x SWITCH PANEL

1 x MARINE GRADE 400AMP ANCHOR SOLENOID

1 x 6MM STAINLESS STEEL BACKING PLATE

ALL FIXING HARDWARE

5 YEAR PLUS LIFETIME WARRANTY

INSTALLATION INSTRUCTIONS

Only required Installation part not included is Wiring Loom, please check Wiring Loom Measurement Details for correct length for your boat.

Famous Anchor Winch Shootout Video:

INSTALLATION:

View our Step-by-Step Guide for Installing a Lone Star Anchor Winch on Your Boat

Installing your Lone Star Anchor Winch is designed to be straightforward for boating enthusiasts of all skill levels. The process involves selecting and prepping the mounting location, accurately positioning and securing the winch, and connecting the electrical wiring. Routing the anchor rode and conducting operational tests ensure proper functionality. Installed on thousands of boats throughout the world, support from Lone Star Marine and Boat Hardware is available to assist you throughout the installation journey.

Wiring Looms

Please Note – Wiring Looms are not included in any of the Combo packs, due to the individual nature of required length of Wiring Looms for different boat set-ups.
See Wiring Loom Sizes

Every anchoring system has to be wired in to operate. LSM Australia looms are made using tinned marine grade Australian Made oxygen free cable, H/D tinned copper lugs and epoxy filled heatshrink. These premade looms are a simple “plug and play” system saving hours on installation. All LSM wiring looms are rated for winches to 2500W. please check Wiring Loom Measurement Details

How to Install Lone Star Anchor Winch from Cheap Thrills Garage,

Checkout the Anchor Winch Installation Images on our huge range of Boats

IMAGES FROM

ANCHOR WINCH

INSTALLS

CUSTOMER REVIEWS:

"Have Fitted a GX2 with all the bells and extras, to a WEBSTER TWINFISHER 5.2 CUDDY CAB, .. I could not recommend any Higher The LONESTAR … the service is great the staff helped out with the setup and i am impressed with the service. My back and arms thank you" Regards Mark Barnes

"The best in the business without question. Currently running a GX2 and GX3 and have been blown away by there performance. I cant comment on after sales service because I haven’t required any." Ben Brown

"I will only ever buy and recommend Lone Star Marine Products." Matthew Leeson

One of our Customers thoughts – Anchor Winch Pros & Cons

"We've been in the boating industry our entire lives and selling boating products online for 17 years. Over the years, we've dealt with various anchor winches, but now we only sell Lone Star. They're reliable, and we have no warranty issues with them. You can buy these anchor winches with complete confidence, knowing they’ve stood the test of time and there’s nothing else like them in Australia." The Owners of Boat Hardware - Wendy, Geoff & Team

Customer Review Video, from Wally’s World of Fishing:

MORE INFORMATION

The GX1 offers performance, reliability, and power in a compact design, making it ideal for most trailer boat fishermen. With its oversized gearing and motor, this unit can be easily installed and ensures efficient operation.

5 Year + Life Warranty on Water Ingress – If water enters the motor, it is covered under the lifetime warranty.
Perfect for small anchor wells, the 12V motor can be rotated to fit in a range of different configurations,
Emergency Manual Release
High Speed and Torque in a Micro Frame
Fully Sealed Motor and Gearbox

SPECIFICATIONS

Retrieval Rate: 39m per Minute

Fall Rate: 39m per Minute

Power Supply: 12V DC

Motor: 1000 WATT

Drum Size: 200MM

Machined Solid 24mm Stainless Steel 1 Piece Shaft

Holding Power at Anchor: 3000kg (no need to tie off)

Max Pull (empty drum): 1100kg

Recomended Working Load: 100kg

You may have seen the GX1's big brother, the GX2, in the famed Drum Winch Shootout. The GX1 boasts jaw dropping longevity and performance and is available with 5 different rope & chain combinations to suit most vessels up to 6m and a variety of anchoring styles. The GX™ series have become the new workhorse & standard in perfectly engineered anchoring systems at the right price. Featuring all Australian Made 316 stainless and machined & anodized 6061 T-6 aluminium construction, “Real Italian” transmissions, triple sealed bearings, twin shaft bearing systems, machined slimline ‘fast change’ collars, & an all new emergency release as standard on all models. Motors are once again custom manufactured exclusively for LSM and are pre-rigged with twin leads for easy installation. From the company with so many Worlds First under its belt, we are proud to have created the first anchor winch motor with an IP68 rating (AS/NZS 60529). This silicon free, glue free, paint free design has been achieved utilizing the latest modern manufacturing techniques, right here in AU. Most importantly, GX Series winches are made to get wet! From small recreational boats to Commercial Vessels over 60ft, there is a GX Series winch just right for your boat and application. All backed by our famous 5 + Life Warranty.

The GX1 is the fastest and most powerful 200mm drum anchor winch on the market today. Thanks to the well oversized gearing (4 times the surface area of gearing in other 200mm drum winches) and 600W motor this micro unit can easily be fitted to boats to 6m for saltwater use and much larger for freshwater applications. Each GX series winch features custom engineered drive components to deliver a faster speed with an amazing amount of grunt. No bushes, split pins, actuators, springs, clutches, or additional circuitry to fail. Nothing extra to buy. Just fast, reliable anchoring.

Ideal for boats up to 6 meters

Every Lone Star Marine Drum Winch Includes a 5 + Life Warranty
