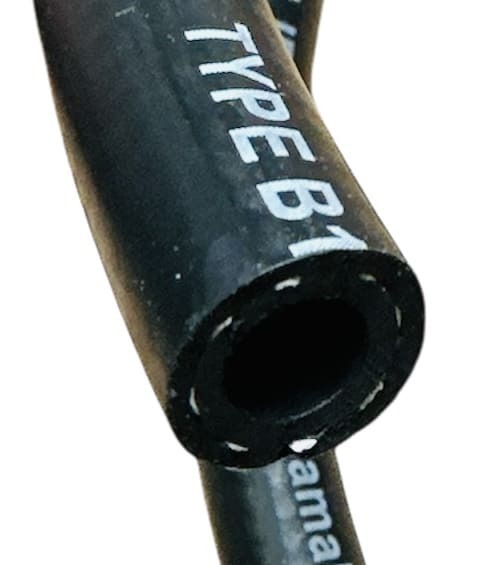

4m Mako Outboard Fuel Line 5/16" (7.95mm) - TYPE B1

This premium marine fuel line by Mako is designed for use in marine diesel and gasoline applications. It provides a durable, high-quality solution for connecting rigid fuel distribution lines to your motor, specifically suited for open or underfloor environments.

TYPE B1: The fuel hoses feed fuel from the boats fuel tank to the fuel filter above deck. Suitable for most outboard motor applications. If the fuel hose is located under deck (larger boats) then A1 (Flame retardant features) may be required. In some cases a metal or A1 fuel hose is used underdeck and then joined to B1 fuel hose when it is above deck to connect to the fuel filter.

Key Features:

  • High-Quality Construction: The black nitrile rubber tube meets USCG standards and is reinforced with a synthetic braid to prevent kinking and ensure long-lasting performance.
  • Optimal Fuel Flow: Larger 3/8" (9.5mm) diameter fuel line is recommended for motors 40hp and above to prevent running lean at high speeds, which can lead to engine damage. For engines under 40hp, 5/16" is the ideal fuel pipe diameter.
  • UV-Stabilised Grey Exterior: Designed to withstand harsh marine conditions, the outer layer is resistant to UV rays, extending its lifespan.
  • No Fittings Included: This fuel line comes without connectors, allowing you to easily attach your own or connect directly to the motor and tank. For options with pre-installed fittings, see our other listings.

Specifications:

  • Length: 4m, also available in 2m length
  • Type: B1 (fire-resistant cover)
  • Temperature Range: -20°C to 70°C
  • Working Pressure: 3.5 Bar

Whether you're outfitting a new boat or replacing worn-out fuel lines, this Mako marine fuel line is a reliable, workshop-tested choice. Safe fuel flow is critical to outboard motor performance—these 5/16" fuel lines will ensure your engine runs efficiently and safely.

(BMF008-4)

SKU BMF008-4
Brand Mako
Shipping Weight 0.6650kg
Shipping Width 0.200m
Shipping Height 0.040m
Shipping Length 0.300m
Shipping Cubic 0.002400000m3
