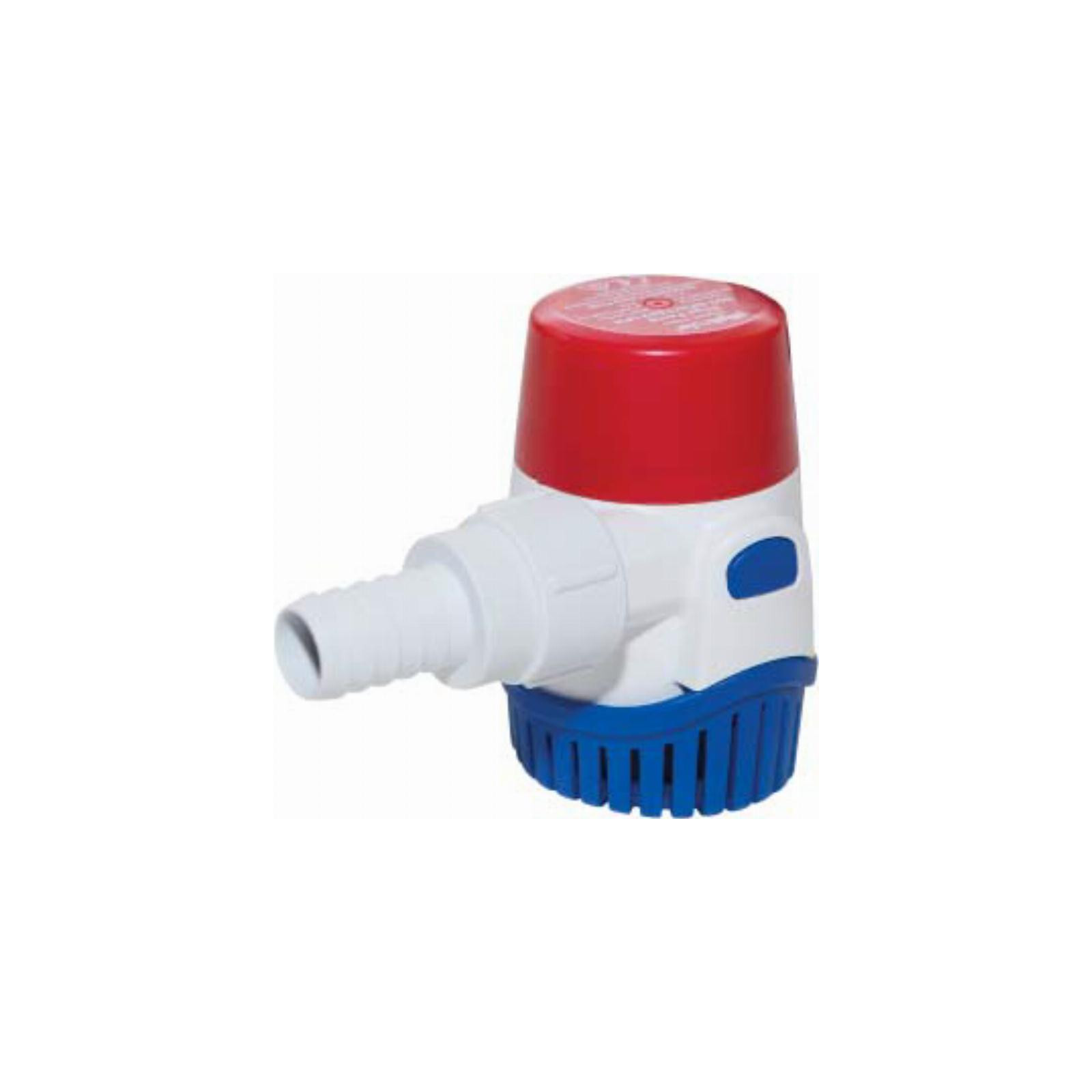

Electric Bilge Pump

  • 500 GPH
  • Non Automatic
  • Submersible
  • IBEX Innovation Award Winner
  • 3 Year Limited Warranty
  • 12V DC
  • Non-Automatic - uses a panel and/or float switch
  • GPH Rating is now at 12v rather than 13.2v with previous models meaning the pump will produce its rated flow at a lower voltage - more typical of on board volatage supply
  • 16 gauge tin coated copper electrical wiring with silicone infused water clocking feature
  • High Flow – optimized impeller to provide greater flow at low amperage
  • High efficiency, low amp motor include true Electromagnetic suppression (EMC)
  • Built-in Thermal Cut-Off (TCO) in the motor provides added protection for pump and vessel
  • Back Flow Prevention - now includes a check valve in the discharge port which reduces the amount of water draining back from the pump discharge hose into the bilge
  • Hidden Air Vents in the pump help prevent air locking in challenging plumbing installations and helps with the check valve operation
  • Threaded Discharge port - easier installation, easier maintenance.  Discharge hose port is included with each pump
  • Snap-on strainer base
  • Compact size & design to fit in the smallest places
  • Full submersible
  • Ignition protected motors
  • Stainless steel shaft
  • Non burn-out when dry

Package Includes

1 x Electric Bilge Pump 500 GPH

1 x 19mm Straight Hose Barb



Specifications

Height: 99mm

Width: 74mm

Depth: 64mm

Fuse Size: 4A Fuse Required (not included)

Foot Print: 64mm x 57mm Oval

Amp Draw: 1.6A (at Maximum Flow)

Voltage: 12V DC

Port Size: 19mm NPSM

(RWB801)

12 Months
SKU RWB801
Model # RWB801
Barcode # 042237104717
Brand RULE
Shipping Weight 0.4640kg
Shipping Width 0.180m
Shipping Height 0.080m
Shipping Length 0.180m
Shipping Cubic 0.002592000m3
