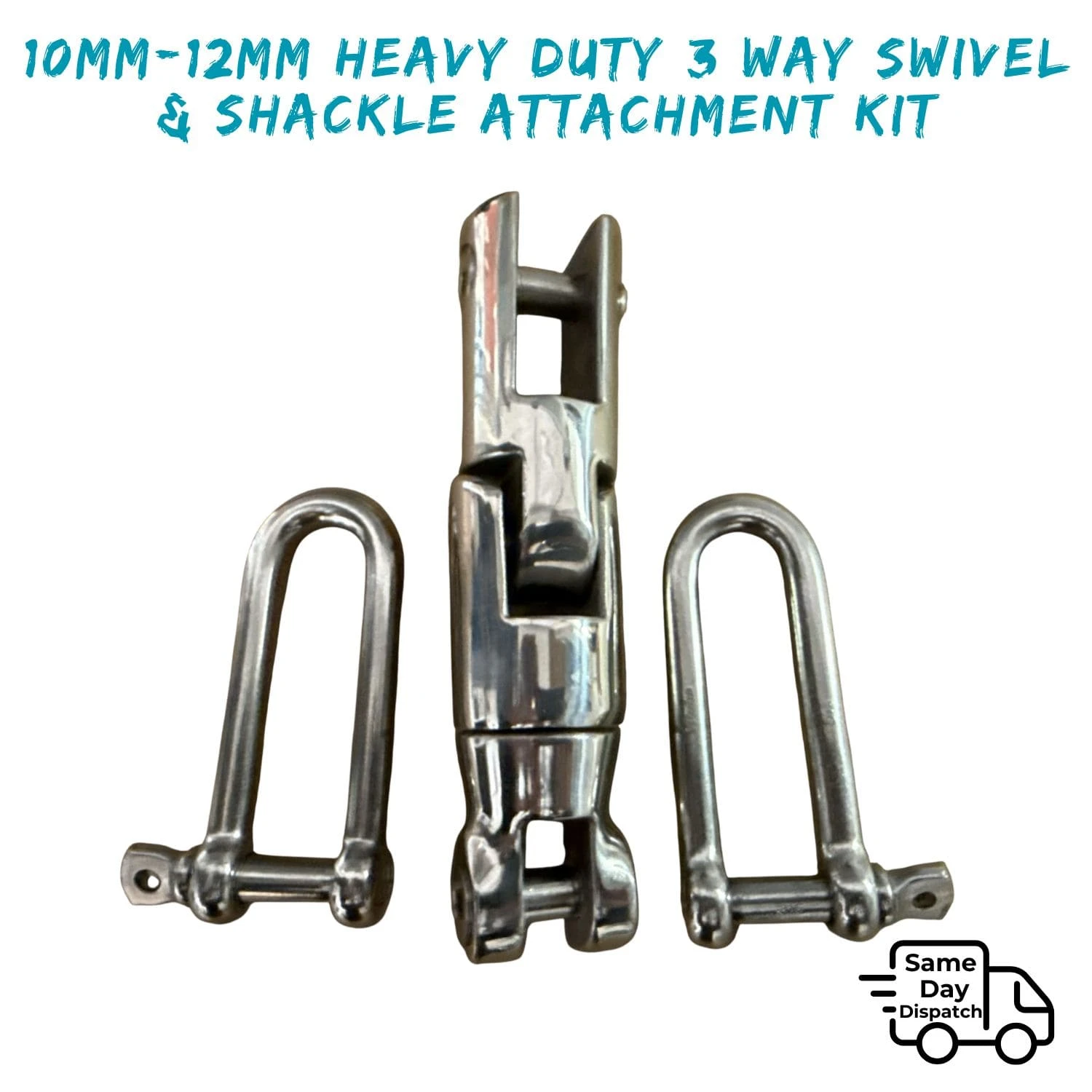

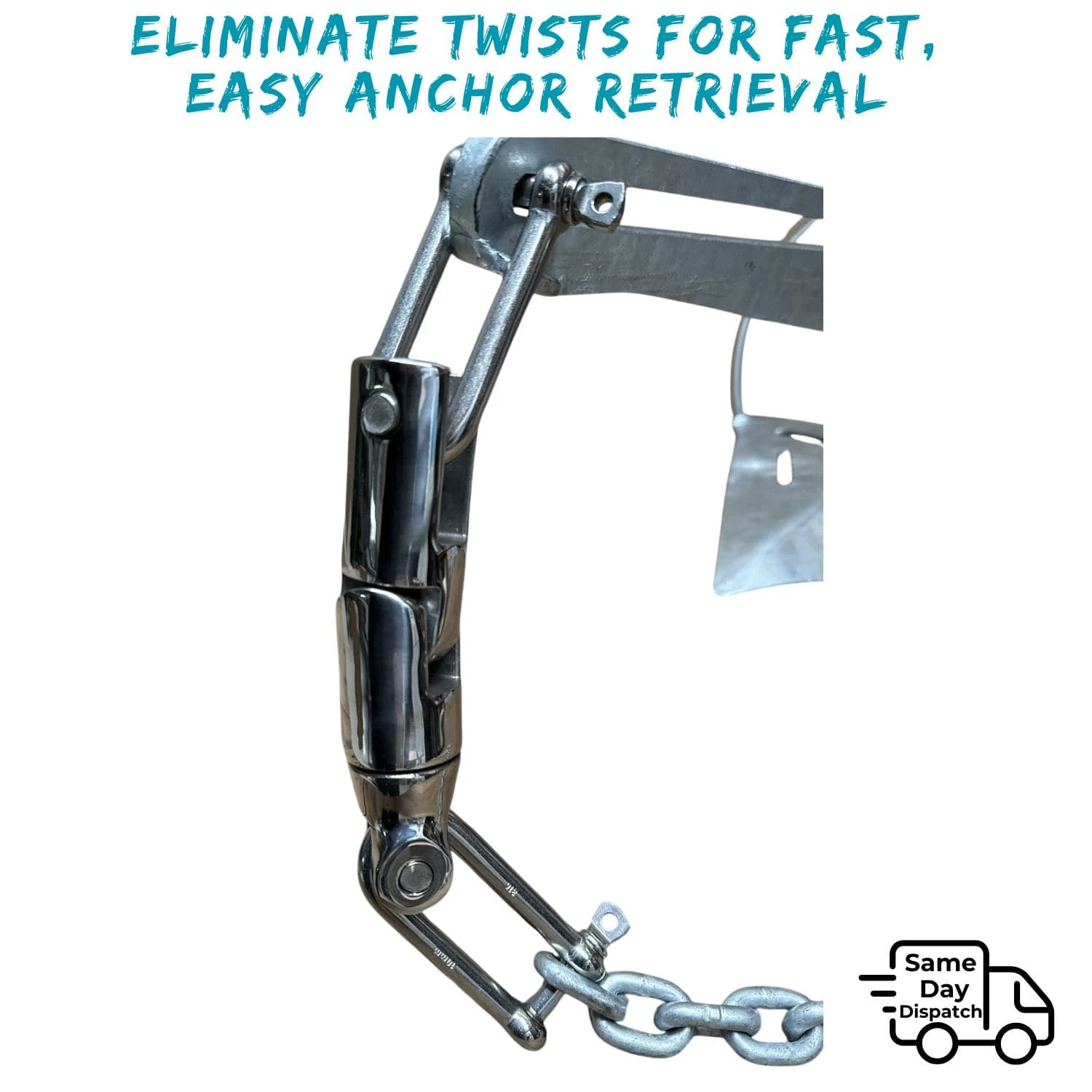

Sarca Anchor Heavy Duty 3 way Swivel D Shackle 10-12mm Kit

Recommended Attachment KIT for Sarca Anchors

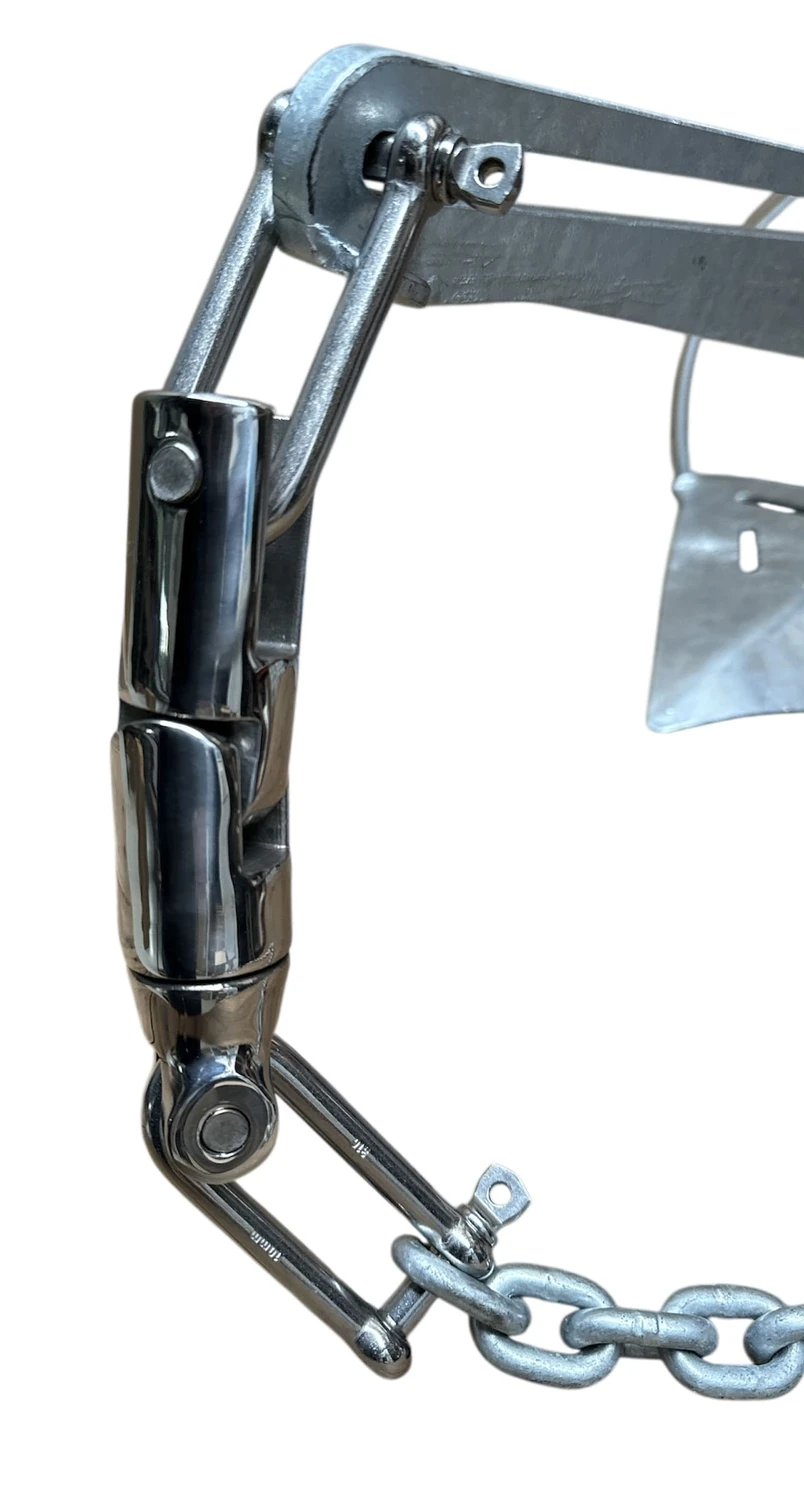

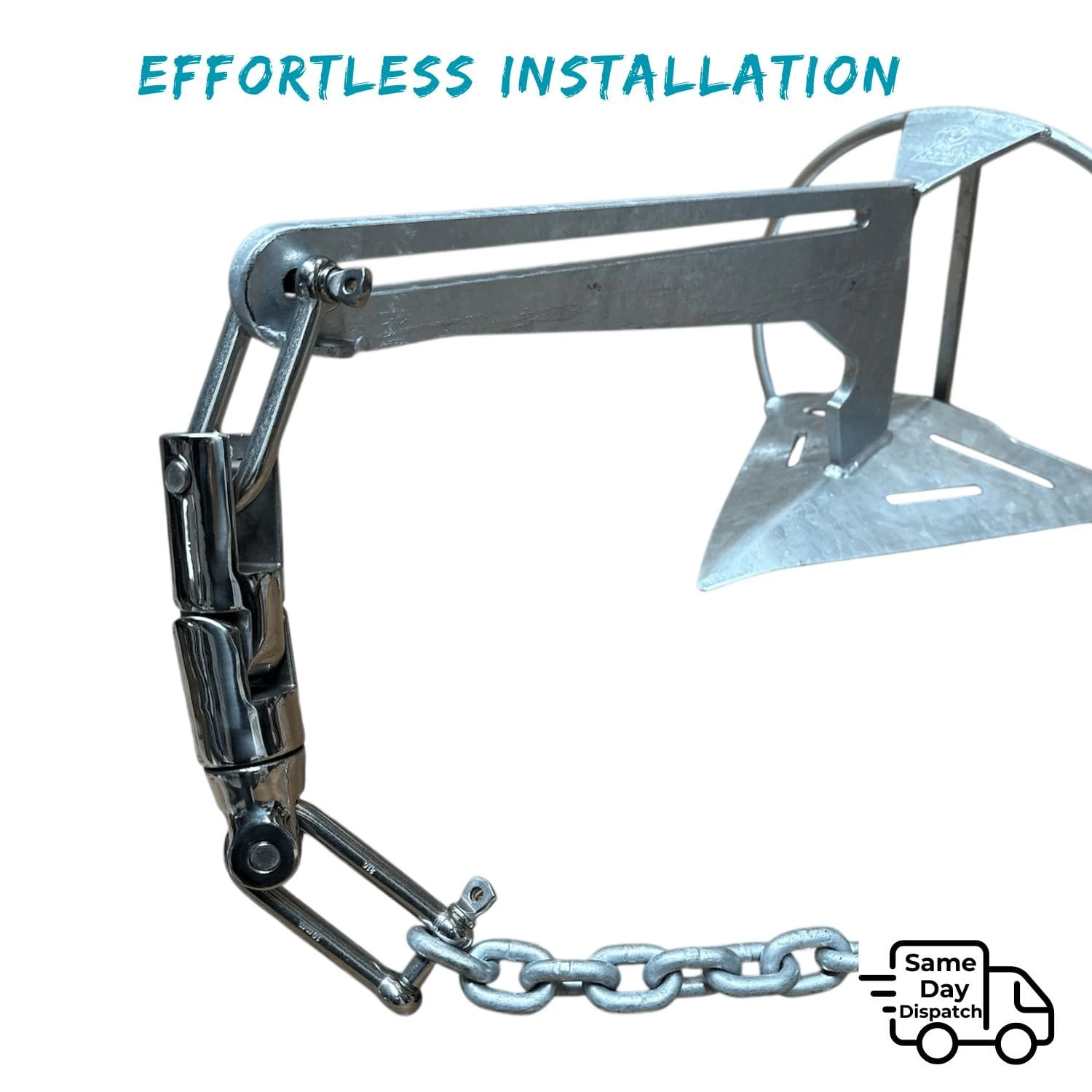

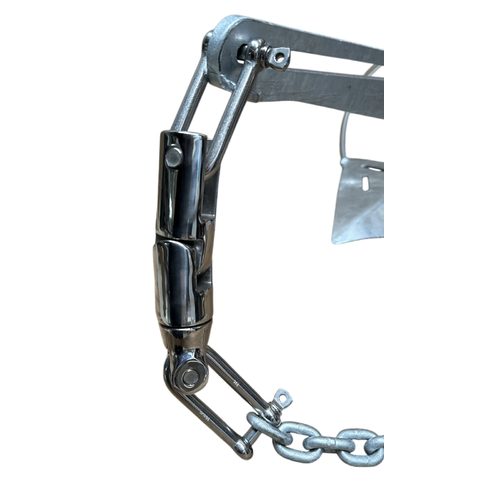

Keep your Anchor from twisting during retrieval and deployment. We have kitted up this Swivel & Shackle KIT for you. This setup will prevent jamming and allow better swivel action

  • Take away the stress
  • No more twists in your Anchor chain or rope
  • Swivels & Pivets

We recommend applying Loctite to the bolts during installation.

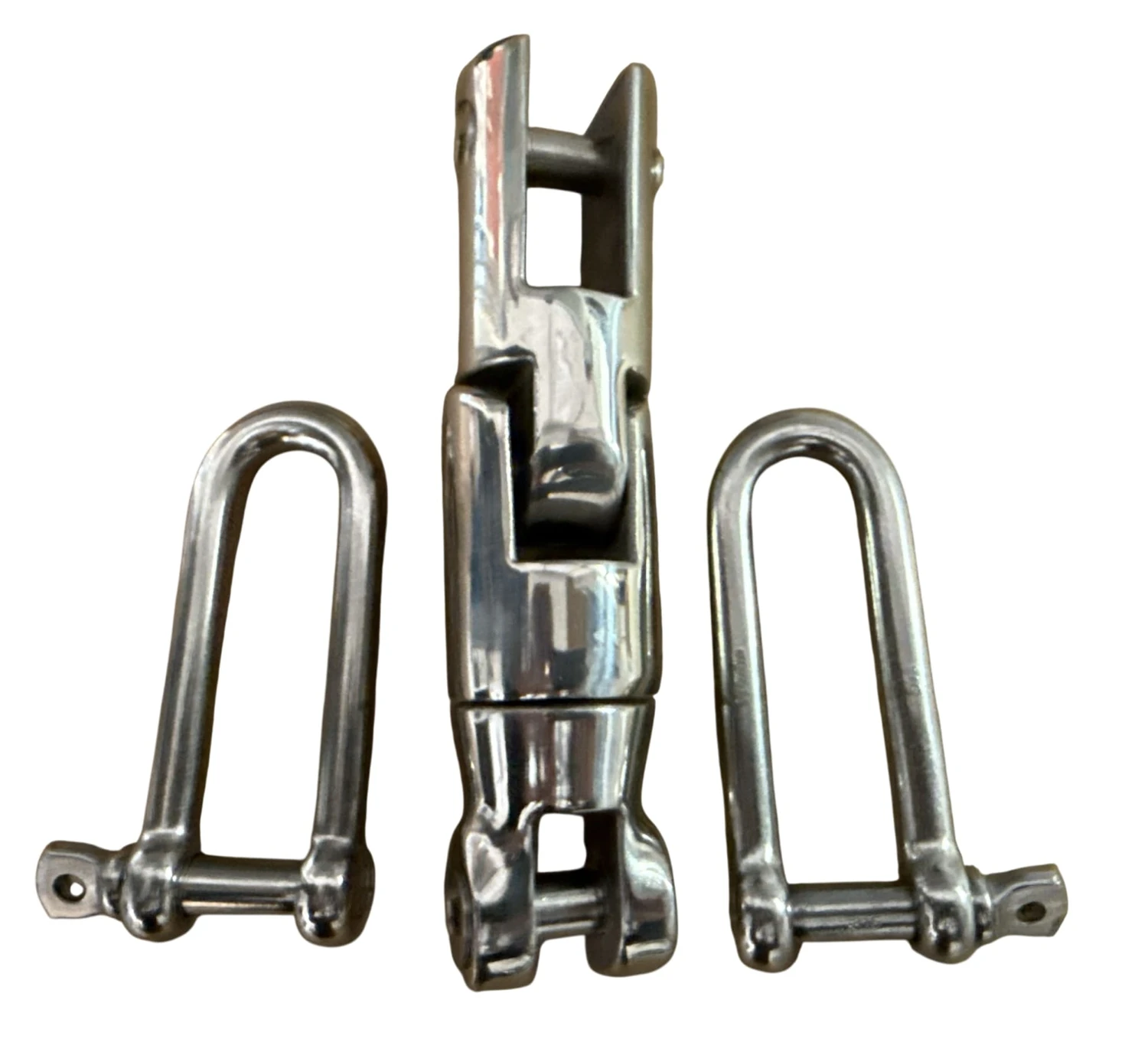

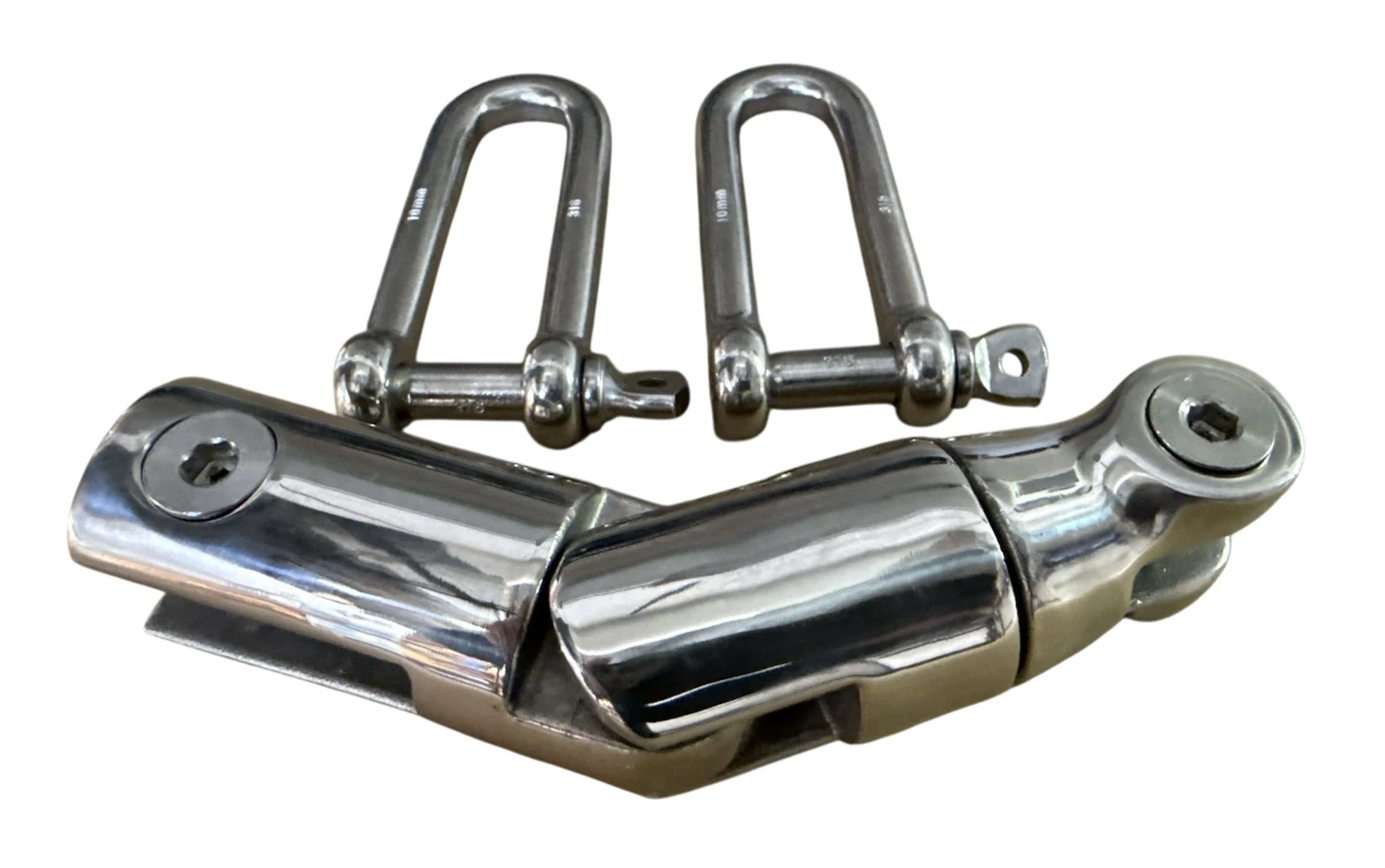

Package Includes

1 x 10mm 3 Way Swivel (316 Marine Grade Stainless Steel)

1 x 8mm Long D Shackle (316 Marine Grade Stainless Steel)

1 x 8mm shackle (316 Marine Grade Stainless Steel)

3 Links of 8mm Galvanised Shortlink Anchor Chain

NOTE: The pieces in this KIT are supplied loose

NOTE: Sarca Anchors sold separately



Specifications

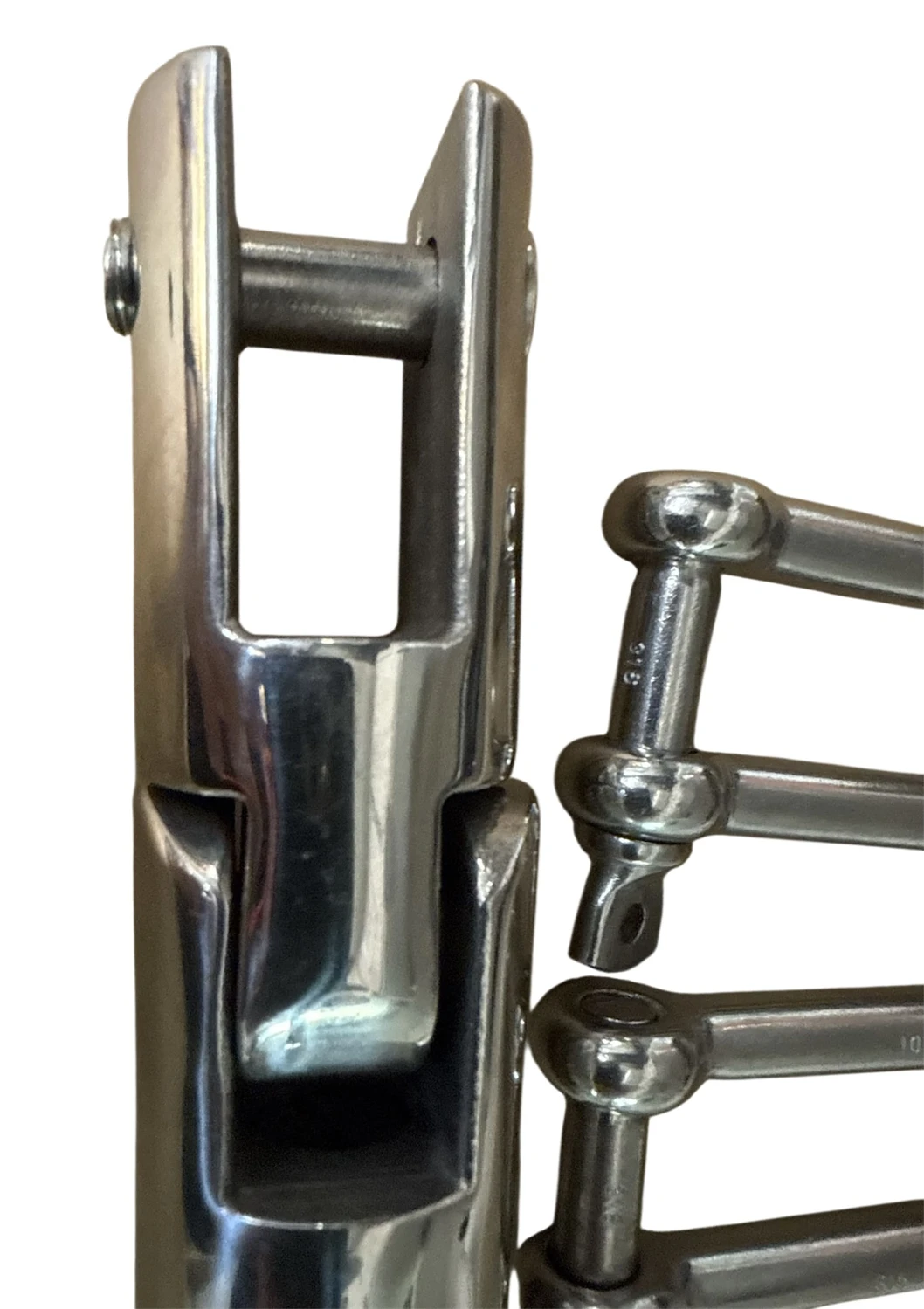

10mm 3 Way Anchor Swivel

Length: 158mm / Diameter: 35mm / Chain Size: 10mm

Pin Diameter: 12mm & 10mm

Fork Gap: 23mm & 12mm

Material: 316 Stainless hand polished Steel

Weight Grade: 3000lb/1350kg (recommended but not tested)

8mm Stainless steel Long D shackle

Material: 316 Stainless hand polished Steel

Screw in pin

Internal Length: 60mm

Internal Width:16mm

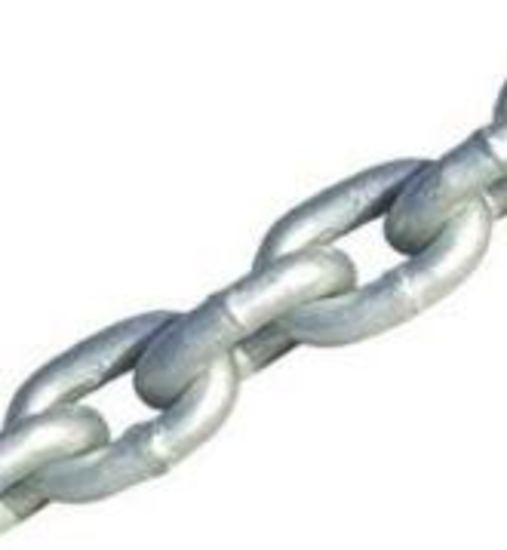

8mm Short Link Anchor Chain

Material: Hot dipped Galvanised



8mm Stainless steel shackle

Material: 316 Stainless hand polish steel

Screw in pin

Internal Length: 30mm

Internal Width: 15mm

(10mmSarcaShackleKIT)

SKU 10mmSarcaShackleKIT
Shipping Weight 0.9960kg
Shipping Width 0.070m
Shipping Height 0.040m
Shipping Length 0.160m
Shipping Cubic 0.000448000m3
