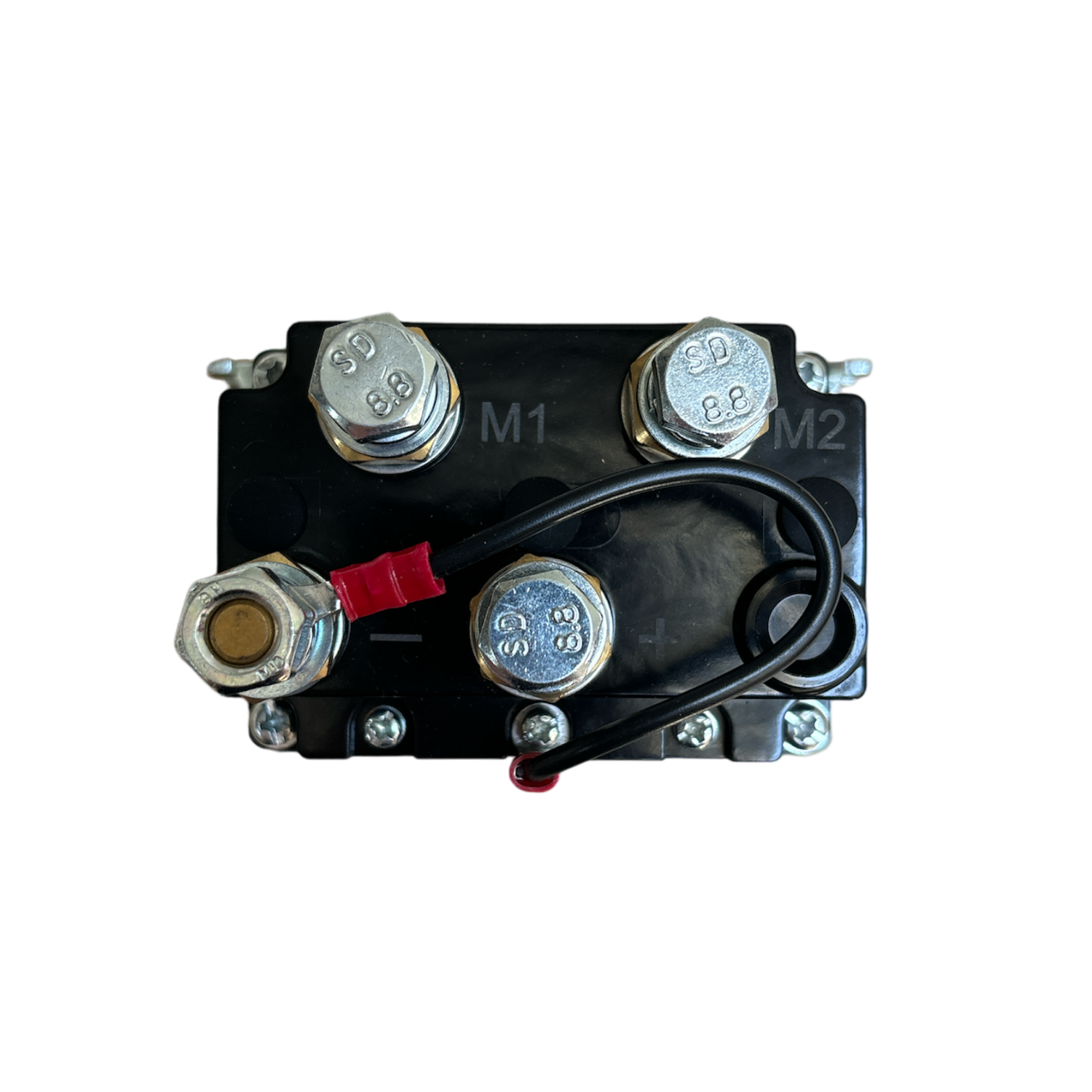

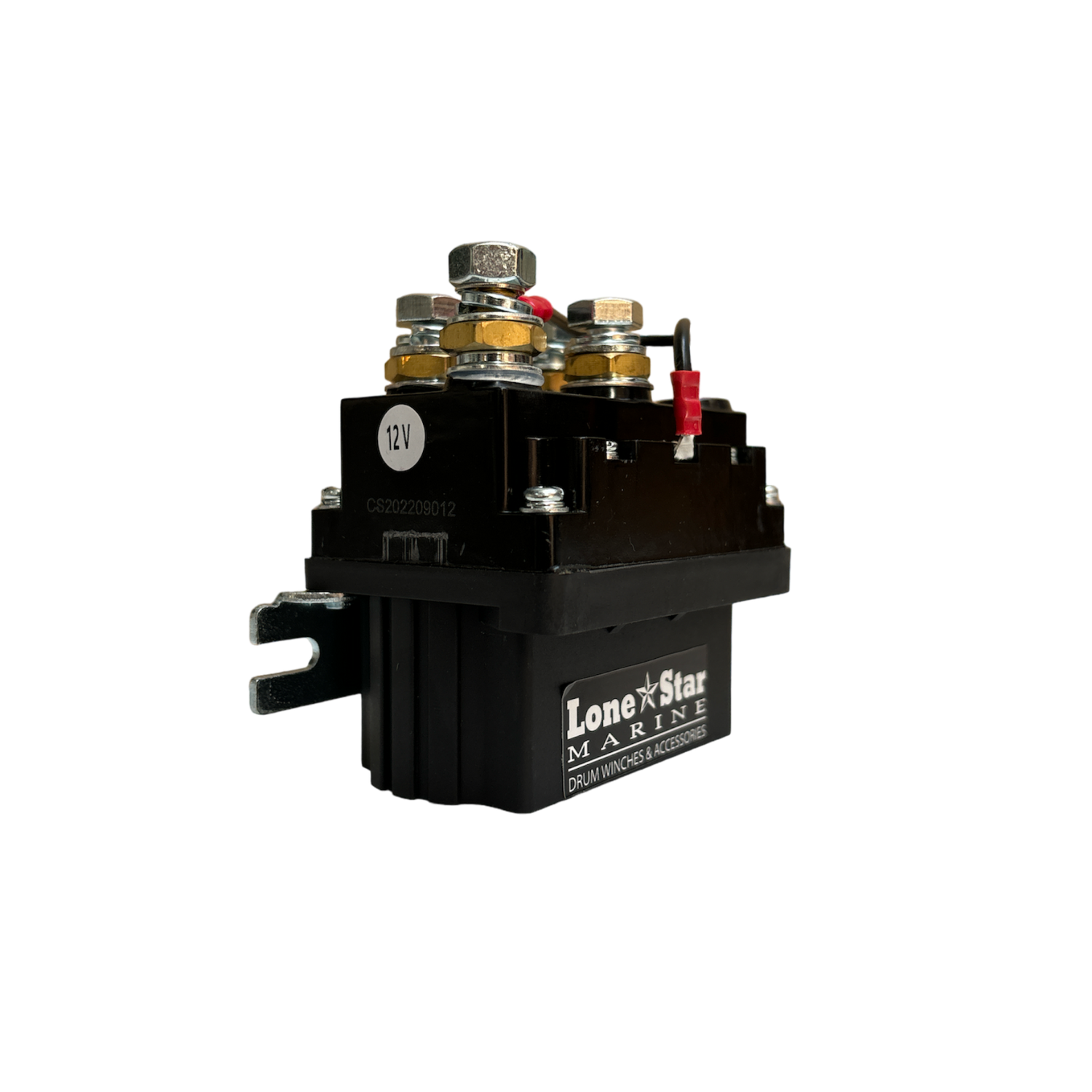

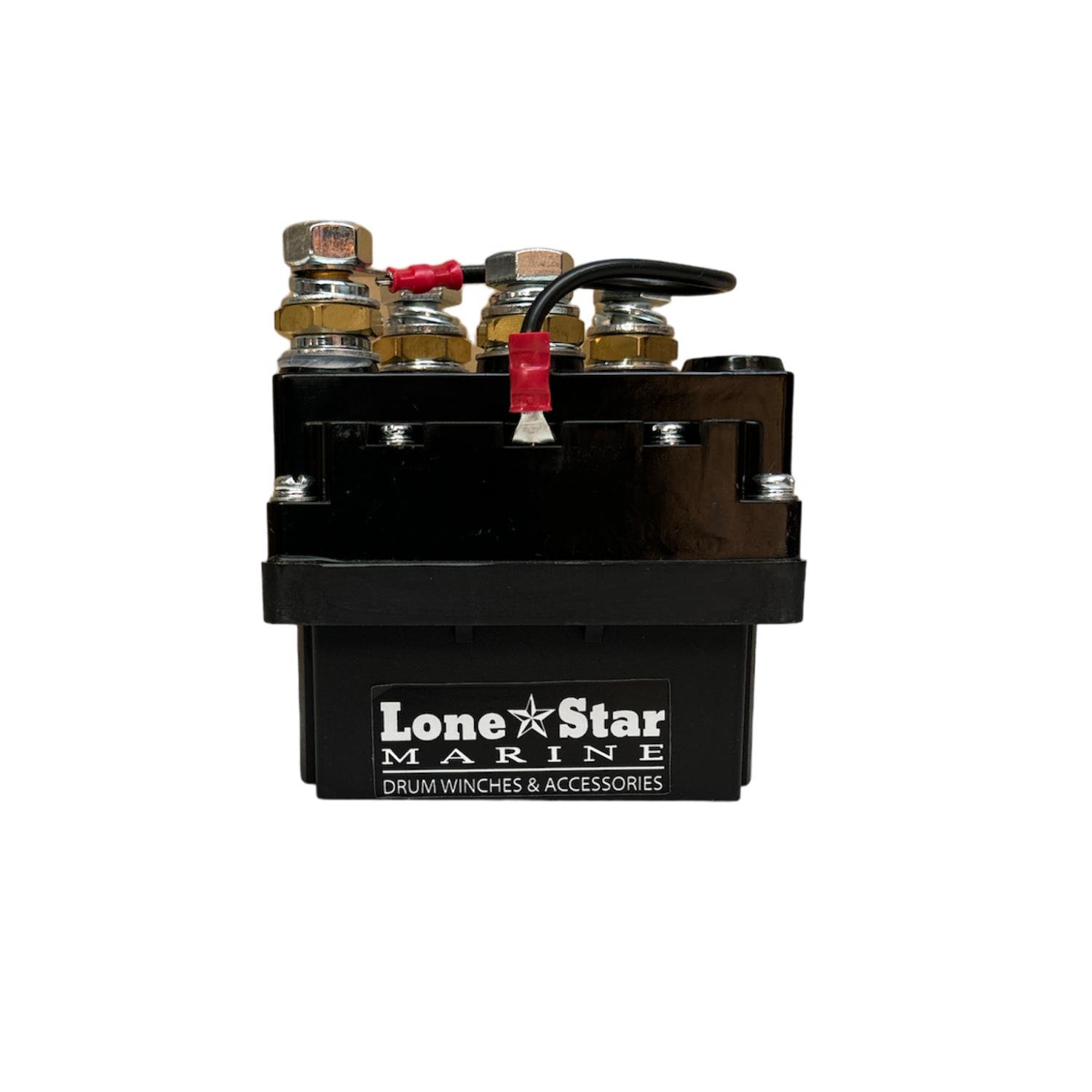

400A Forward/Reversing Solenoid – Large

Forward / Reverse Solenoid – 400A Heavy Duty

This 400A Forward/Reversing Solenoid is a heavy-duty marine electrical component designed for reliable control of anchor winch motors. Built for durability and high-current performance, it provides smooth forward and reverse operation for winches up to 1500W.

Features:

• Heavy Duty Construction: Designed for demanding marine electrical systems

• Dual Direction Control: Forward and reverse operation for anchor winches

• High Current Capacity: Handles up to 400A load

• Marine Grade Reliability: Built for harsh saltwater environments

• Compact Design: Easy to install in tight electrical spaces

• Mounting Bracket Included: Secure and stable installation

• Pre-Wired Switch Connections: Simplifies installation process

• Suitable for Anchor Winches: Ideal for GX series and similar systems up to 1500W

Package Includes:

• 1 x 400A Forward / Reverse Solenoid

• Mounting Bracket

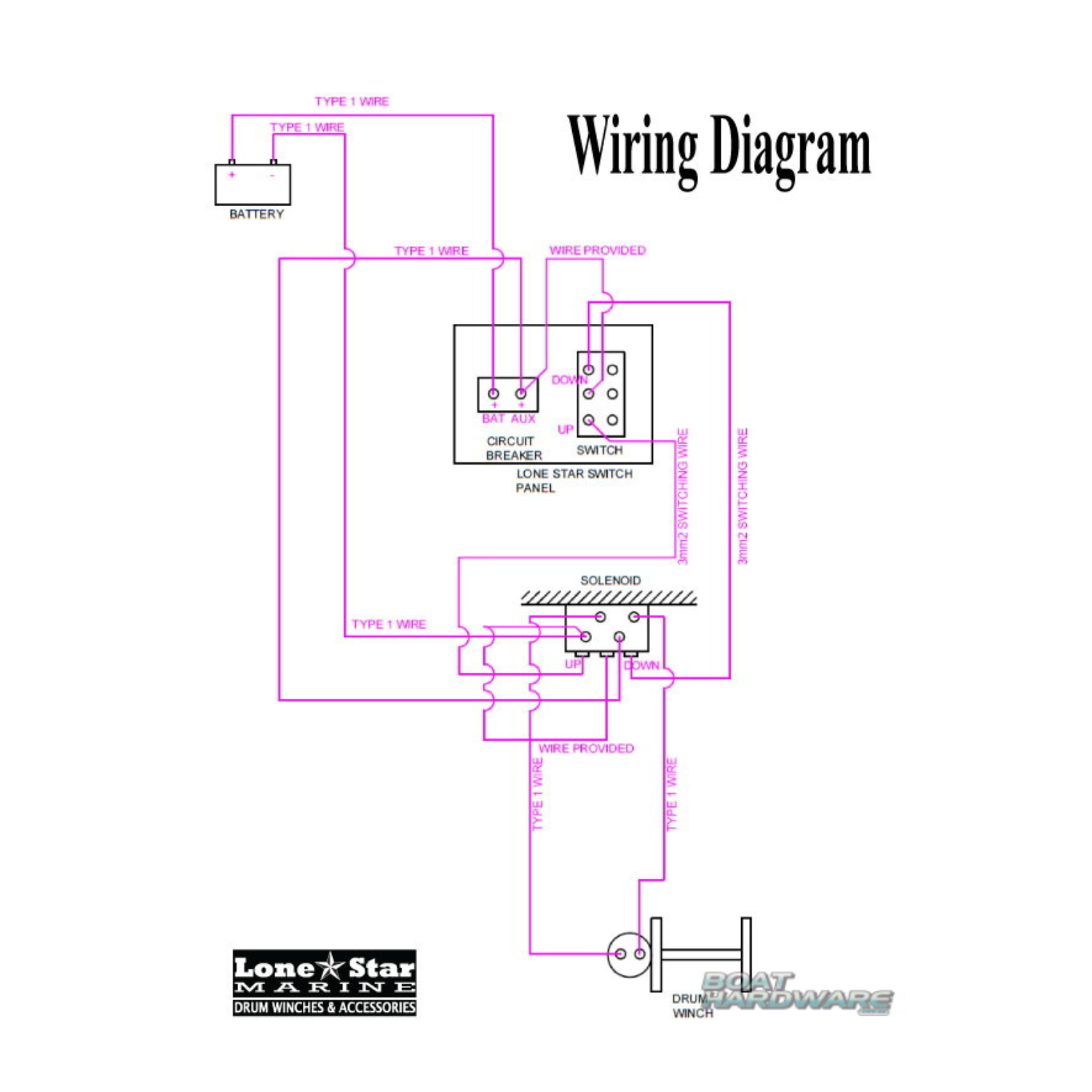

• Switch Wiring

Specifications:

• Voltage: 12V

• Current Rating: 400A

• Poles: 4

• Function: Dual Direction (Forward / Reverse)

• Width: 80mm

• Height: 10mm

• Depth: 60mm

(Dimensions exclude mounting bracket)

Description:

The 400A Forward/Reversing Solenoid is designed to provide reliable directional control for anchor winch systems. Its heavy-duty construction ensures consistent performance under high load conditions, making it suitable for demanding marine environments.

Compact and easy to install, it is an essential component for safe and efficient operation of electric anchor winches up to 1500W.
