RELAXN® Battery Switch 2 Position

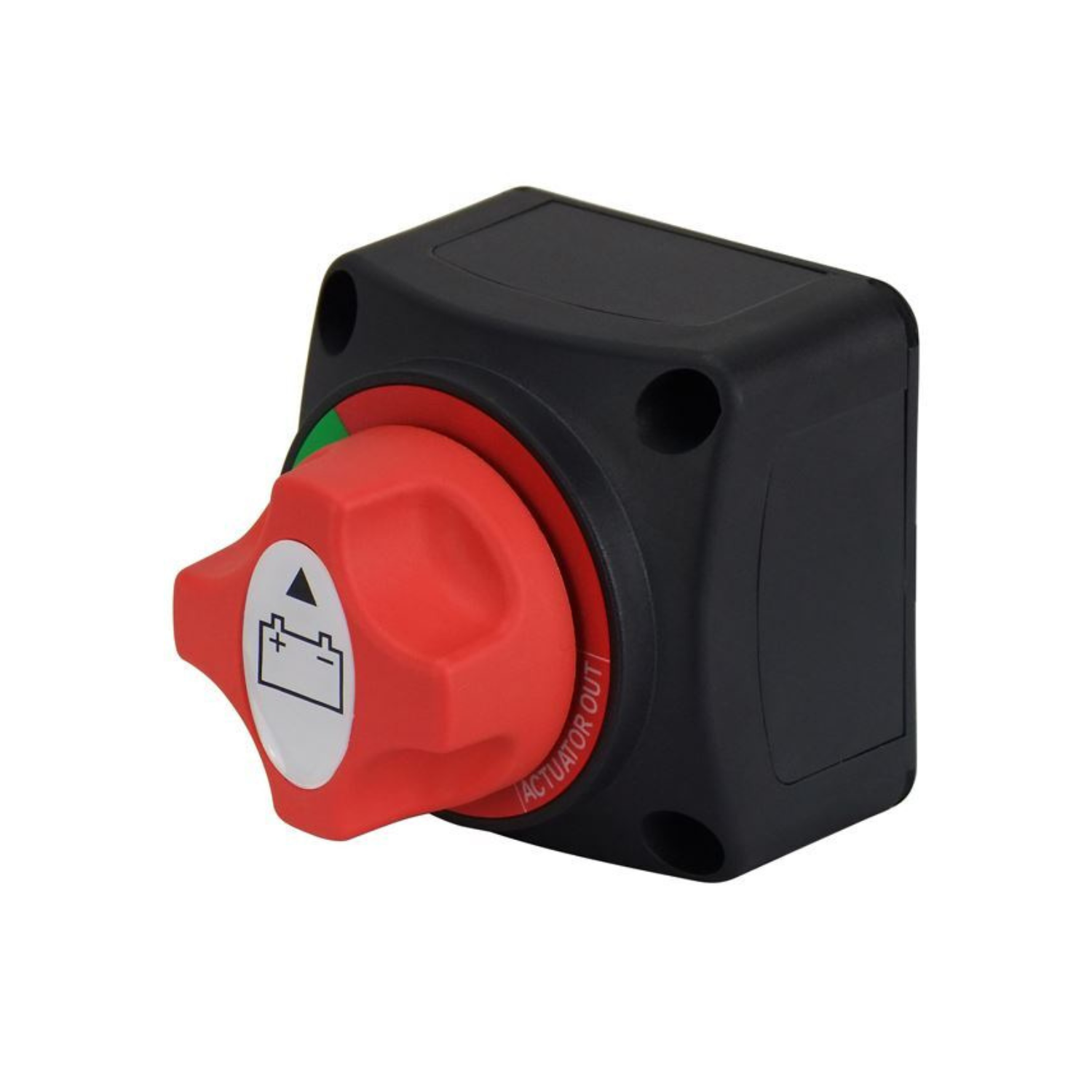

Relaxn® Battery Switch (2 Position – On/Off, 300A)

The Relaxn® Battery Switch is a heavy-duty and reliable power isolation solution designed for marine and automotive applications. With a simple On/Off function, it allows you to quickly disconnect power when your system is not in use, helping protect your battery and improve safety.

Built with robust materials and high current capacity, it’s ideal for managing power in boats, 4WDs, caravans, and other electrical setups.

Features:

• 2 Position Switch: Simple On/Off battery control

• Heavy Duty Construction: Built for demanding applications

• Brass Terminals: ապահով strong conductivity and corrosion resistance

• Weather Resistant Design: Suitable for harsh environments

• High Current Capacity: Handles large electrical loads with ease

• Battery Isolation: Helps prevent unwanted battery drain

• Surface Mount Design: Easy and secure installation

• Versatile Use: Ideal for marine, automotive, and off-grid systems

• 1 Year Warranty

Package Includes:

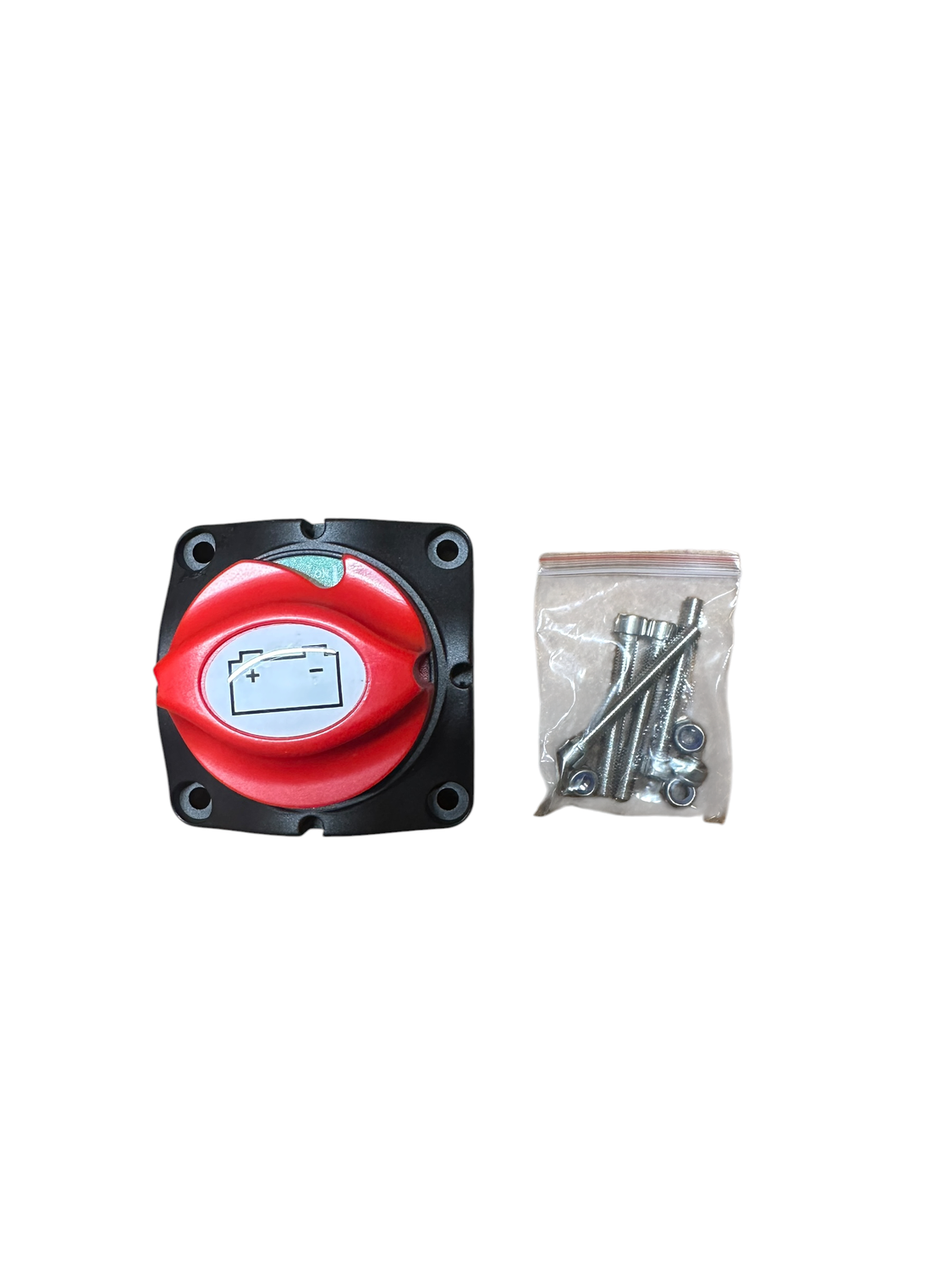

• 1 x Relaxn® Battery Switch (2 Position)

Specifications:

• Voltage Range: 12V – 50V DC

• Operating Voltage: 12V / 24V

• Continuous Load: 300A at 12V

• Cranking Rating: 1000A

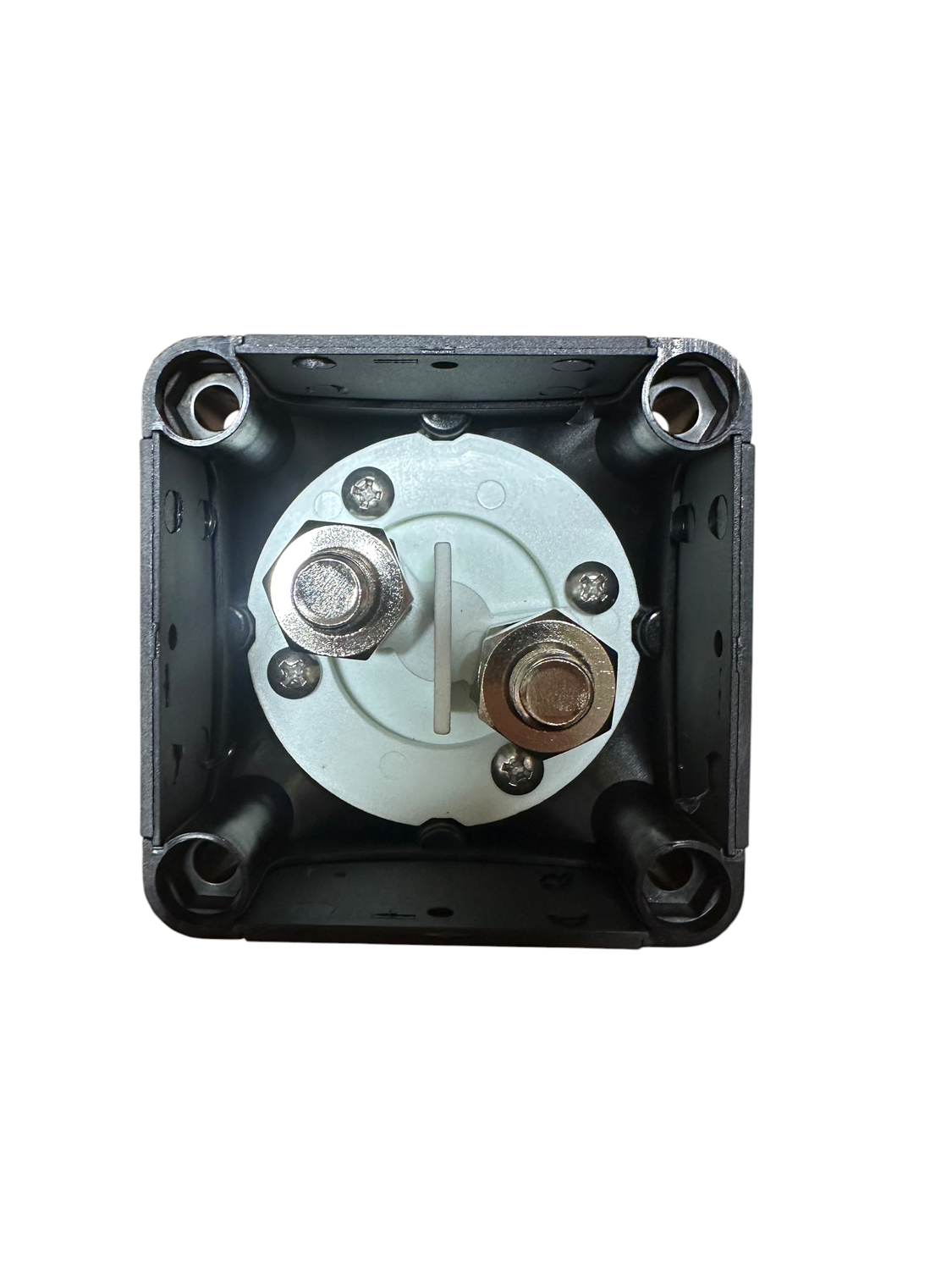

• Terminal Stud Size: M10 x 19mm

• Mounting Hole Size: 5mm

• Length: 69mm

• Width: 69mm

• Depth: 74mm

Description:

The Relaxn® Battery Switch offers a simple and effective way to isolate power and protect your electrical system. Its On/Off functionality allows you to safely disconnect your battery when not in use, reducing the risk of drain and improving overall system safety.

Durable, weather resistant, and easy to install, it’s an essential component for maintaining reliable power control in marine and automotive environments.
