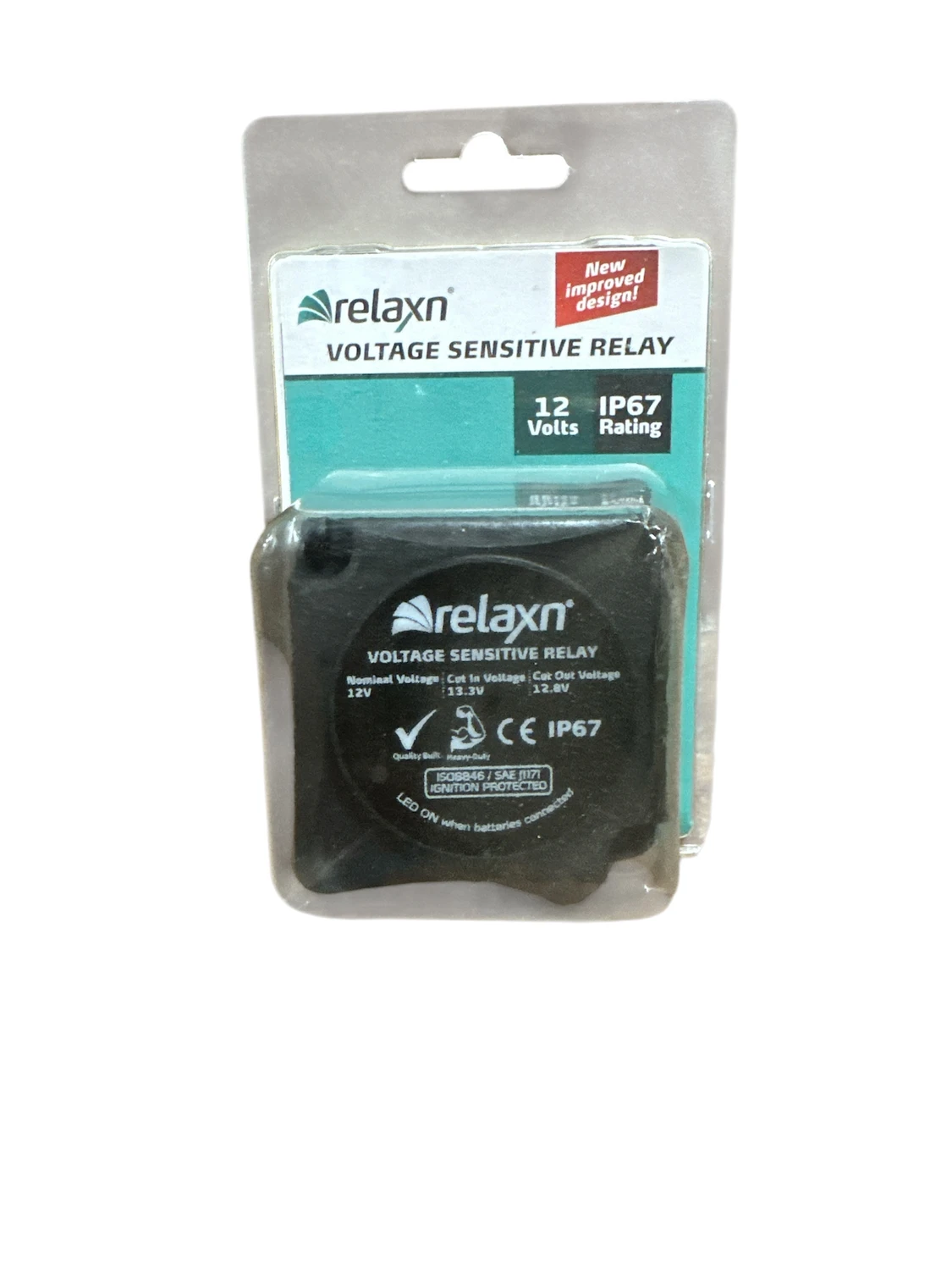

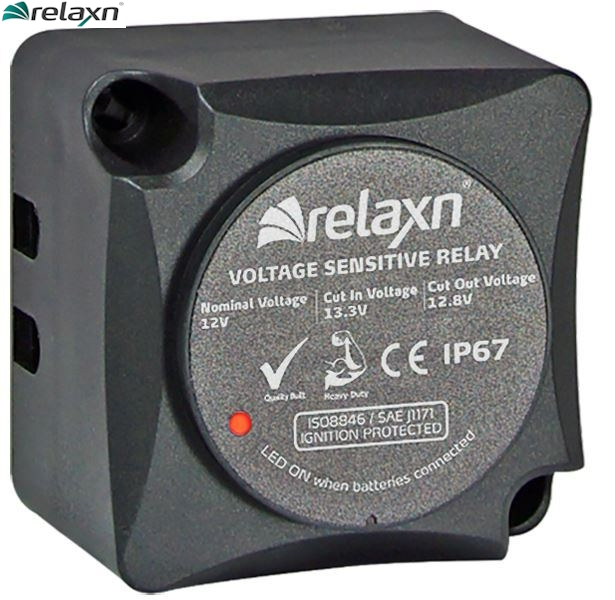

RELAXN® Voltage Sensitive Relay

Relaxn® Voltage Sensitive Relay (12V – 125A Continuous)

The Relaxn® Voltage Sensitive Relay is a reliable and efficient solution for managing dual battery systems and high-current electrical loads. Designed to automatically connect and disconnect circuits based on voltage levels, it ensures optimal battery charging while preventing unnecessary drain.

Ideal for marine, 4WD, and caravan setups, this heavy-duty relay allows both batteries to charge simultaneously while protecting your system with built-in surge protection and smart voltage control.

Features:

• Automatic Voltage Control: Connects and disconnects at preset voltage levels

• Dual Battery Charging: Allows simultaneous charging of two batteries

• Prevents Battery Drain: Isolates batteries when voltage drops

• High Current Capacity: Handles demanding electrical loads

• Surge Protection: Helps protect your electrical system

• LED Indicator: Clear visual status display

• Silver Tipped Contacts: Improved durability and conductivity

• Weatherproof Design: IP67 rated for harsh environments

• Heavy Duty Construction: Built for marine and off-road use

• CE Certified: Quality and safety assured

• Multi Charging Capability: Supports efficient power distribution

Package Includes:

• 1 x Relaxn® Voltage Sensitive Relay

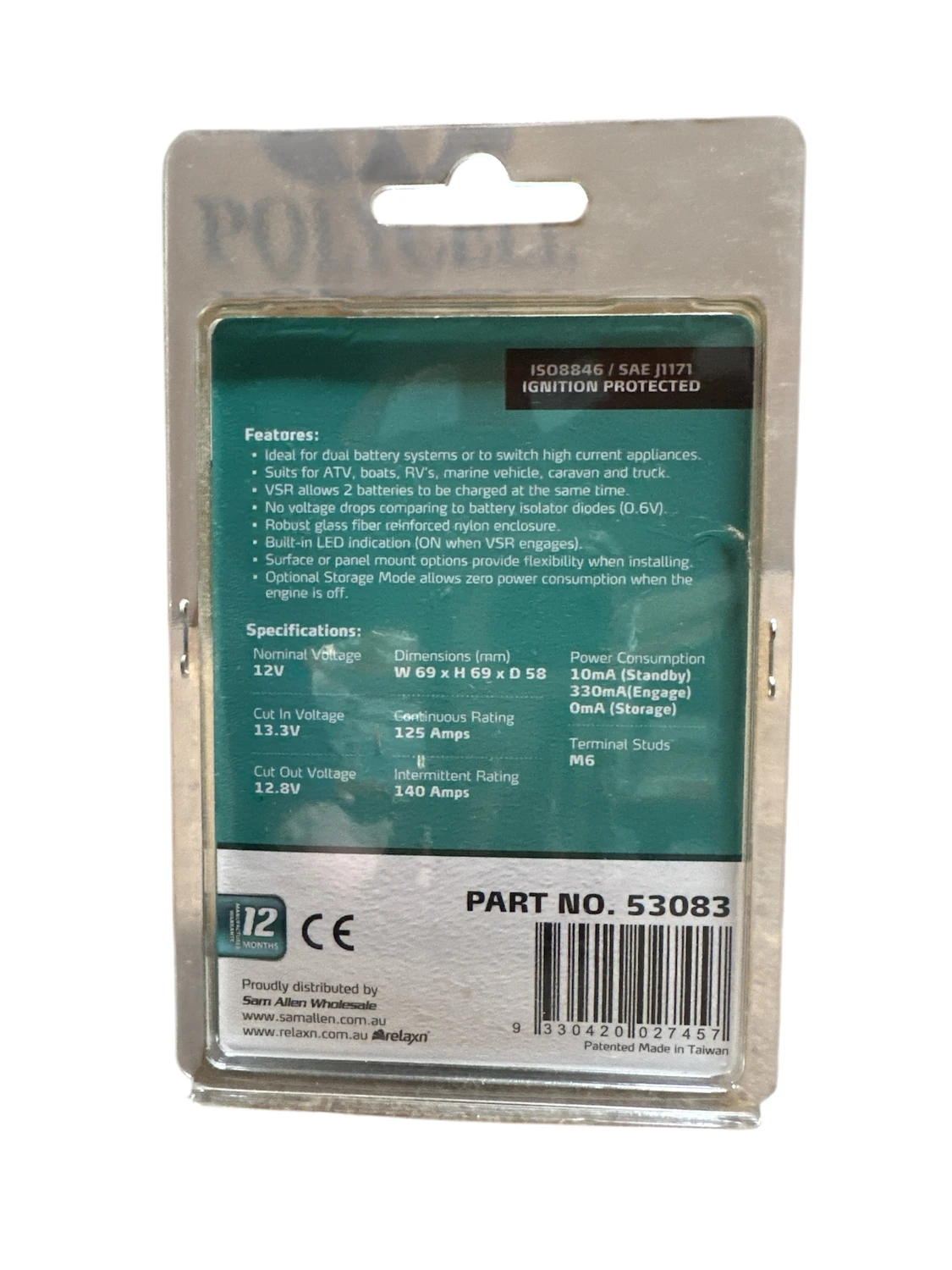

Specifications:

• Voltage: 12V

• Cut-In Voltage: 13.3V

• Cut-Out Voltage: 12.8V

• Continuous Rating: 125A

• Intermittent Rating: 140A

• Peak Rating: 160A (for 60 seconds)

• Length: 68mm

• Width: 68mm

• Depth: 58mm

• Rating: IP67 Weatherproof

Description:

The Relaxn® Voltage Sensitive Relay is designed to simplify battery management by automatically controlling power flow between batteries and connected circuits. It ensures your primary battery remains protected while efficiently charging auxiliary systems.

Durable, weatherproof, and easy to integrate, it’s an essential component for anyone running dual battery setups or high-demand electrical systems in marine or off-grid environments.
